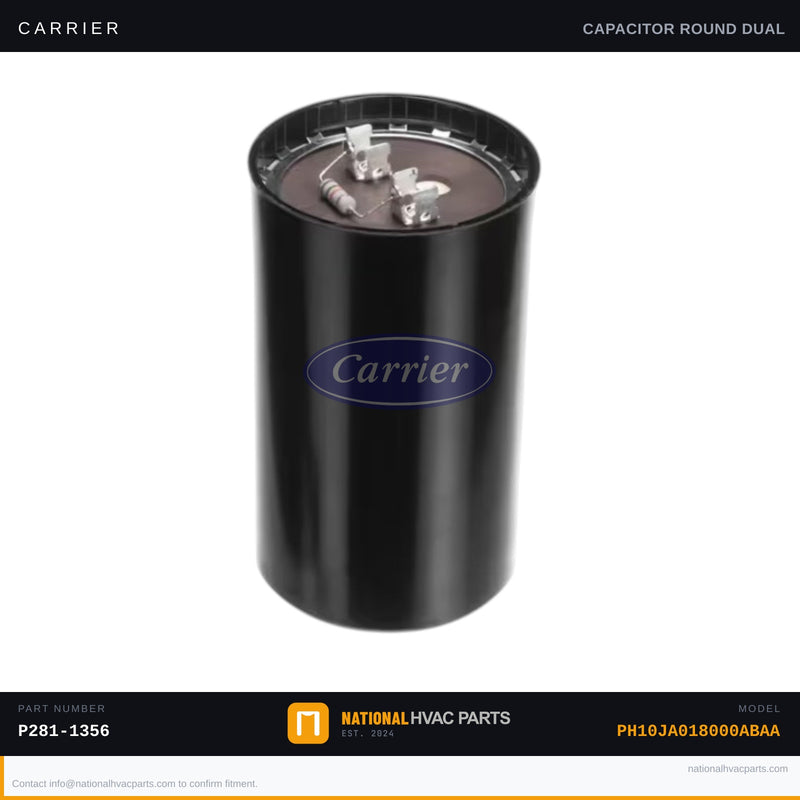

OEM Carrier Run Capacitor for PH10JA018000ABAA Heat Pump Unit

The run capacitor in your Carrier PH10JA018000ABAA stores and releases electrical energy to keep the compressor and condenser fan motor running efficiently after start-up. It provides the phase shift that single-phase motors need to maintain torque. When a run capacitor weakens or fails, the symptoms are unmistakable: a loud humming from the outdoor unit, the fan motor struggling to spin or needing a push to start, the compressor tripping the breaker, warm air instead of cold, or the unit short-cycling on overload. A bulging or leaking capacitor top is a sure sign of failure. Run capacitors are rated in microfarads (MFD/µF) and voltage (typically 370V or 440V). This part may be a single or dual-run capacitor (HERM + FAN terminals). OEM capacitors hold a tight ±5% tolerance on the MFD rating — for example, a 45/5 µF dual capacitor stays within spec across its service life. Always match both the MFD value and the voltage rating; a higher voltage rating is acceptable, but the MFD must match exactly. OEM matters here more than almost any other part. Generic aftermarket capacitors often ship with ±10–15% tolerance and lower-grade dielectric film. A capacitor delivering the wrong MFD forces the compressor windings to draw excess current, overheating them and dramatically shortening compressor life — a $1,500+ failure caused by a $30 part. Installation difficulty: 2 of 5. Tools: 1/4" nut driver, insulated needle-nose pliers, and a multimeter with capacitance mode. SAFETY: a capacitor holds a lethal charge even after power is off — kill the breaker and discharge the capacitor across its terminals with an insulated resistor before touching it. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PH10JA018000ABAA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
