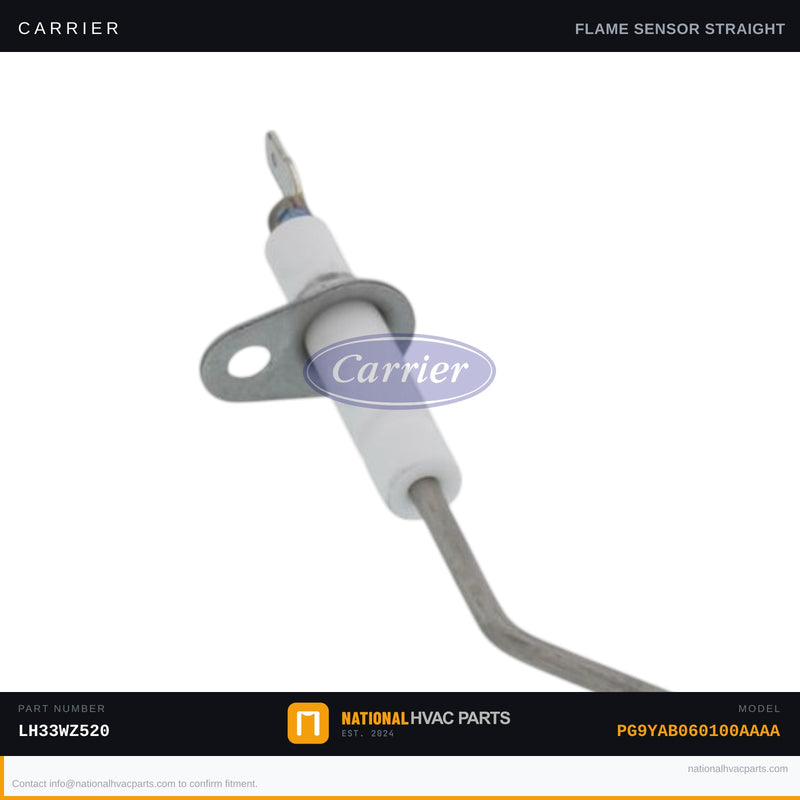

OEM Carrier Flame Sensor Replacement for PG9YAB060100AAAA Furnace

The flame sensor is a single-rod probe that sits in the burner flame path and confirms to the furnace control board that ignition actually occurred. It works by flame rectification — the lit flame conducts a tiny microamp DC current between the rod and burner ground. When the rod oxidizes or develops hairline cracks, that signal falls below the board's threshold and the control assumes there is no flame even when the burners are lit. On your Carrier PG9YAB060100AAAA the symptom is classic: the furnace fires, runs for 3–7 seconds, then shuts the gas valve and re-tries, short-cycling several times before locking out. You'll notice no sustained heat, a clicking gas valve, and often a flashing LED fault code at the board. Specs: this is a single-rod sensing element with a high-temperature porcelain insulator rated for continuous flame-zone temperatures. A healthy sensor delivers roughly 2–6 microamps DC of flame current; anything under about 0.5 µA causes dropout. The rod and bracket geometry are matched to the burner spacing on this furnace so the tip seats correctly in the flame envelope. OEM vs generic: flame current is measured in millionths of an amp, so contact quality and rod metallurgy matter enormously. Generic sensors often use lower-grade alloys and looser insulator tolerances that oxidize faster and read erratically, returning you to nuisance lockouts within a season. The OEM part holds a stable, repeatable microamp signal across thousands of cycles. Install difficulty: 2/5. Tools: 1/4" nut driver, fine emery cloth, and a multimeter set to microamps to verify flame current. SAFETY: turn off the furnace at the breaker AND shut the gas before removing the burner-compartment sensor. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PG9YAB060100AAAA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.

Shipping & Returns

Same-day shipping on orders before 3 PM CST. Standard delivery 2-5 business days, express options available at checkout. 30-day hassle-free returns on uninstalled parts — free return shipping included. 1-year OEM factory warranty coverage.
