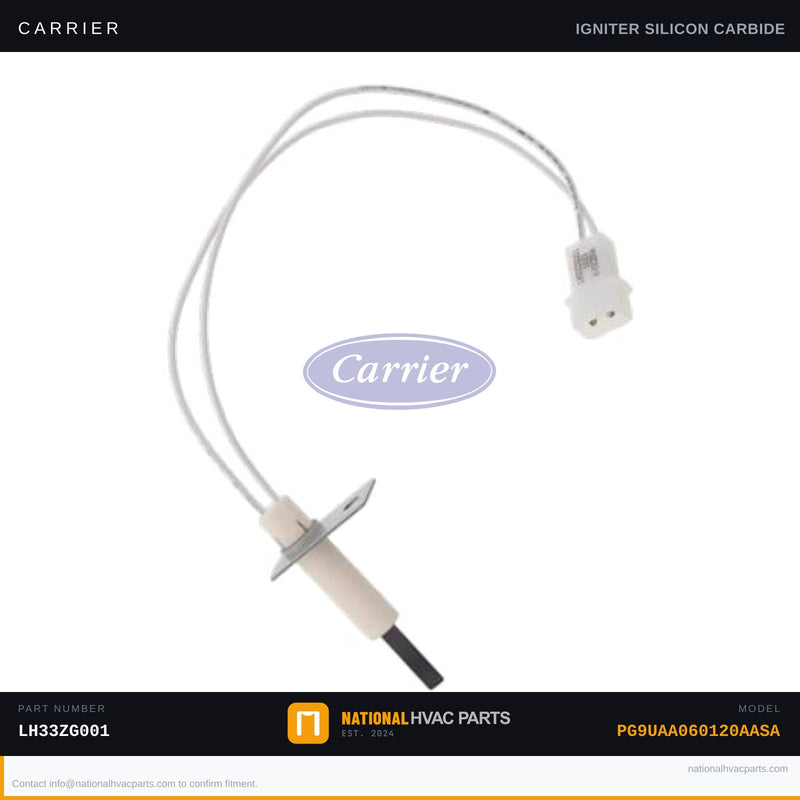

OEM Carrier Furnace Hot Surface Igniter for PG9UAA060120AASA

The hot surface igniter (HSI) is what lights the burners on your Carrier furnace. The control board sends voltage to the igniter, it glows white-hot, and the gas valve opens to ignite the burners. When it fails, you get the classic no-heat call: the inducer runs, you hear the gas valve click, but the burners never light — and after a few tries the furnace locks out. A cracked or aged igniter may glow dimly or unevenly, causing delayed ignition (a small "whoomp") or intermittent no-heat on cold mornings. This OEM igniter is built to the correct material and resistance spec for the PG9UAA platform. Carrier uses durable silicon nitride elements (more shock- and contamination-resistant than the brittle older silicon carbide style); a healthy igniter typically reads in the tens to low-hundreds of ohms cold, and the OEM part matches the resistance the control board's timing was designed around. OEM matters because igniter resistance is everything. A generic igniter with the wrong resistance won't glow hot enough — or hot fast enough — to ignite gas within the board's trial-for-ignition window, causing repeated lockouts even though the part "looks" fine. Silicon nitride OEM elements also resist the micro-cracking that kills cheaper carbide clones in a season or two. Install difficulty: 2/5. Tools needed: 1/4" nut driver and a multimeter to confirm resistance. #1 safety warning: turn off the gas at the shutoff and kill power at the breaker first. Never touch the ceramic element with bare fingers — skin oils create hot spots that cause premature failure; handle it by the bracket. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PG9UAA060120AASA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.

Shipping & Returns

Same-day shipping on orders before 3 PM CST. Standard delivery 2-5 business days, express options available at checkout. 30-day hassle-free returns on uninstalled parts — free return shipping included. 1-year OEM factory warranty coverage.
