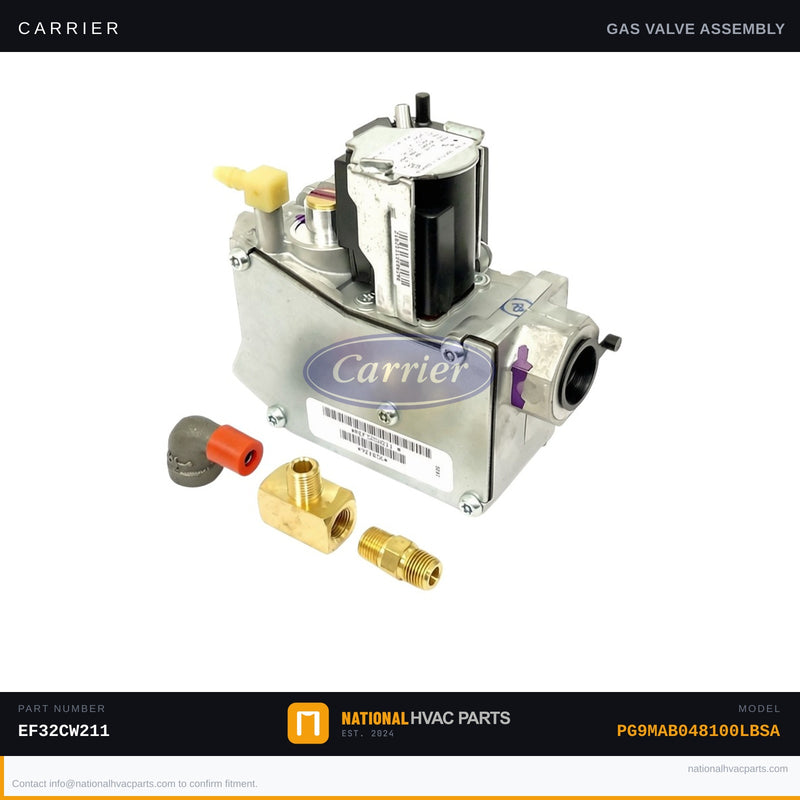

OEM Carrier Gas Valve EF32CW211 (EF660015) 24V 1/2" Natural Gas for Model PG9MAB048100LBSA

This is the OEM factory-specified combination gas valve for the Carrier PG9MAB048100LBSA gas furnace. Manufactured by White Rodgers (model 36J24-510), it serves as the primary control point for natural gas flow into the heat exchanger. When this valve fails, the furnace will attempt ignition, the hot surface igniter will glow, but no gas will flow — resulting in a lockout fault code and a cold home. A sticking or leaking valve can also cause intermittent heating or a continuous gas smell near the unit.

• Specs: 24V coil voltage | 1/2" inlet × 1/2" outlet | Natural gas, 3.5" W.C. outlet pressure | Single-stage, slow-opening | Includes LP conversion kit and brass adapters | White Rodgers 36J24-510 equivalent
• OEM vs Generic: This OEM valve is factory-calibrated to the exact outlet pressure specification for the Carrier PG9MAB048100LBSA. Aftermarket valves may ship with incorrect regulator presets, causing rich/lean combustion, nuisance lockouts, or unsafe operation. Never compromise on a gas valve.
• Install difficulty: 3/5 — Gas work requires care. Turn off the manual gas shutoff and 24V power before beginning. Tools needed: adjustable wrench, 1/4" nut driver, pipe thread sealant (gas-rated). A licensed HVAC technician is recommended. Always leak-test all connections with approved solution after installation.
• Warranty: 1-year OEM factory warranty. In-stock and ships same business day from our warehouse.

Compatibility: Designed for the Carrier PG9MAB048100LBSA packaged gas furnace. OEM part number EF32CW211, superseded by current replacement kit EF660015. Also cross-references: EF32CW191, EF32CW192, EF32CW197, EF32CW198, EF32CW200, EF32CW201, EF32CW203, EF32CW204. Verify your unit's gas type (natural gas) and inlet size before ordering. Our fitment team is available to confirm compatibility before you buy.
