OEM Carrier Flame Sensor Replacement for Furnace PG9MAB036040LBSA

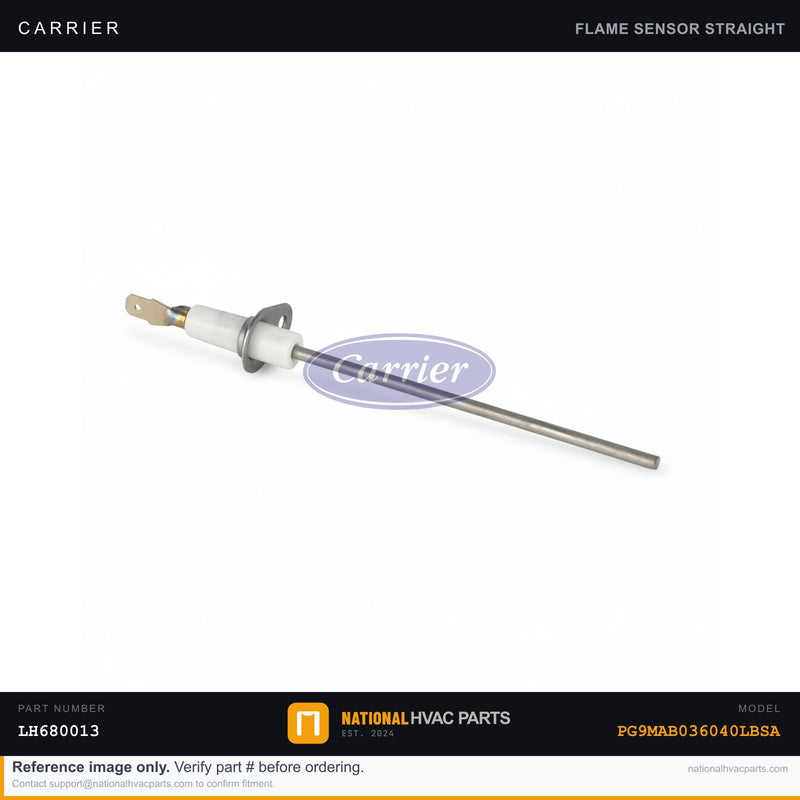

The flame sensor is a thin metal rod mounted in the burner assembly of your Carrier PG9MAB036040LBSA packaged gas furnace. After the igniter lights the burners, the sensor confirms a flame is actually present by conducting a tiny microamp current through the flame back to the control board (flame rectification). When the rod becomes coated with carbon, silica, or oxidation — or simply wears out — that signal weakens. You'll notice the furnace lighting normally, running for 3 to 7 seconds, then abruptly shutting the gas off and trying again. After three or four failed cycles the board goes into hard lockout and you get no heat at all, often with a flashing diagnostic LED. This OEM rod is built from high-temperature Kanthal/stainless wire sized to the exact burner depth Carrier specifies. A healthy sensor reads a clean 2–6 microamps DC; below roughly 1 µA the board rejects the flame. The ceramic insulator is rated for repeated thermal cycling without cracking or shorting to ground. Why OEM matters here: aftermarket rods are frequently the wrong length or mounting angle, so the tip sits too shallow in the flame and never builds enough signal — producing the same nuisance lockouts you're trying to fix. The OEM part guarantees correct flame immersion and a stable microamp reading. Install difficulty: 2 of 5. Tools: 1/4" nut driver, fine emery cloth (to clean the new tip's mating surface if needed), and a multimeter for verifying microamps. SAFETY: shut off both the gas valve and the furnace breaker before removing the burner-compartment panel. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PG9MAB036040LBSA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
