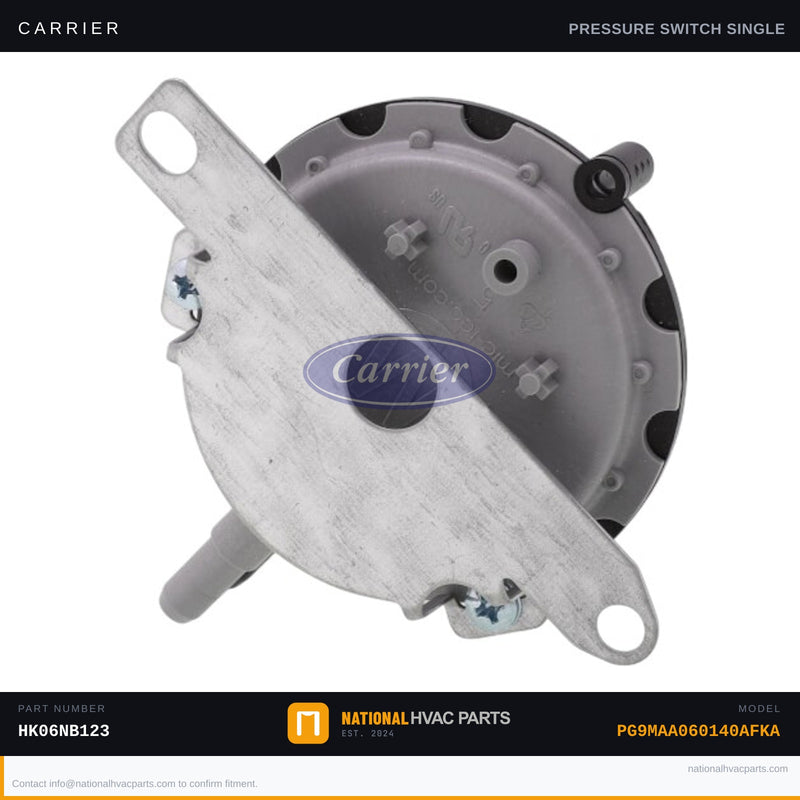

OEM Carrier Gas Furnace Pressure Switch for PG9MAA060140AFKA

The pressure switch is the safety device that proves the draft inducer is moving combustion air before your Carrier PG9MAA furnace is allowed to light. The inducer starts, pulls a vacuum on the switch hose, and the contacts close to let ignition proceed. When it fails or its port clogs, you will see the inducer motor spin up and then the furnace shut down with no ignition, repeated short-cycling, or a pressure-switch lockout code on the control board. Blocked vents, cracked hoses, or condensate in the line cause the same symptom, so inspect those first. Specs: This is a negative-pressure (vacuum) switch with a factory-calibrated set point measured in inches of water column, typically in the -0.40 to -0.65 in. W.C. range for this furnace. The contacts are normally open and close only when the inducer pulls the rated vacuum. Match the set point and port count exactly to your model. OEM vs Generic: The trip point is everything on this part. A generic switch calibrated even slightly off will either nuisance-trip and lock the furnace out, or — worse — close too easily and allow ignition without adequate venting, a carbon-monoxide hazard. OEM switches hold their calibration over thousands of cycles where cheaper diaphragms drift. Install: Difficulty 2/5. Tools: 1/4-inch nut driver and a multimeter for continuity. SAFETY: Kill power and shut off the gas before servicing, and confirm the hose and inducer port are clear before condemning the switch. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PG9MAA060140AFKA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
