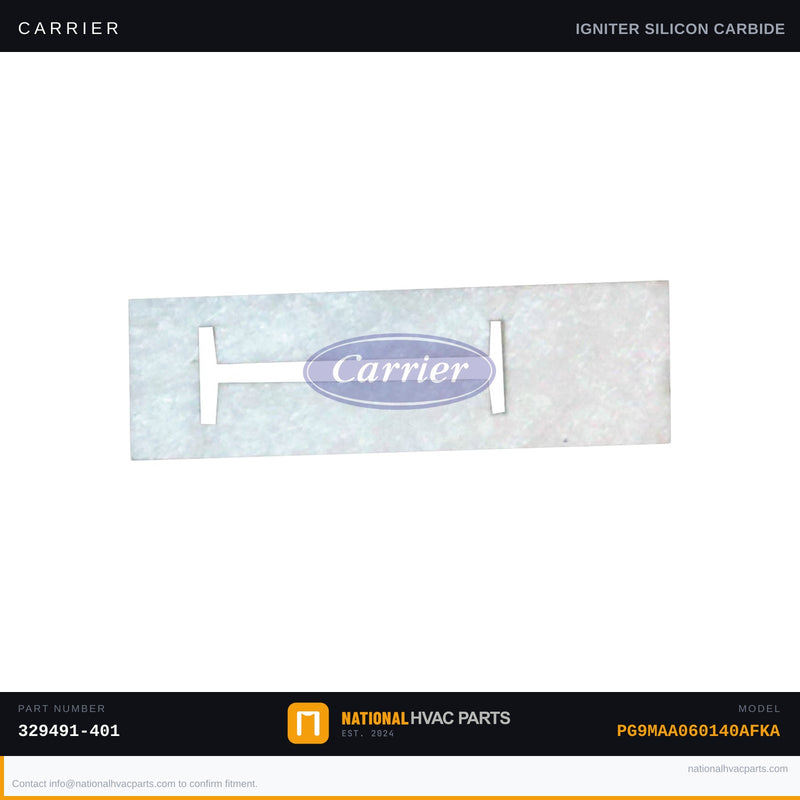

OEM Carrier Furnace Hot Surface Igniter for PG9MAA060140AFKA

The hot surface igniter is the ignition source for your Carrier PG9MAA gas furnace. On each call for heat, the control board sends 120V to the igniter, which glows white-hot (near 2,000°F) to light the burner gas. As it wears out you will notice the furnace clicking and trying to start but blowing cold air, long delays before the burners light, or short-cycling. A cracked igniter commonly causes the furnace to lock out after three failed ignition attempts, shown as a fault flash on the control board. Specs: This is a 120V hot surface igniter built around a silicon nitride element, which is far more durable and impact-resistant than the older silicon carbide igniters that chip during handling. A healthy igniter typically reads roughly 40 to 75 ohms cold on a multimeter; an open (infinite) reading means it has failed. Silicon nitride also reaches ignition temperature faster and tolerates far more on/off cycles over its life. OEM vs Generic: Igniter resistance and element geometry are matched to your furnace ignition timing. A generic igniter with the wrong resistance will not glow hot enough inside the board trial-for-ignition window, causing nuisance lockouts and unburned gas. Cheap aftermarket silicon carbide elements are brittle and crack from normal thermal cycling, leading to repeat failures. OEM silicon nitride lights reliably even on cold starts and lasts years longer. Install: Difficulty 2/5. Tools: 1/4-inch nut driver and a multimeter. SAFETY: Turn off the gas and kill power at the furnace switch before servicing. Handle the new igniter by its ceramic base only — skin oils create hot spots that shorten its life. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PG9MAA060140AFKA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.

Shipping & Returns

Same-day shipping on orders before 3 PM CST. Standard delivery 2-5 business days, express options available at checkout. 30-day hassle-free returns on uninstalled parts — free return shipping included. 1-year OEM factory warranty coverage.
