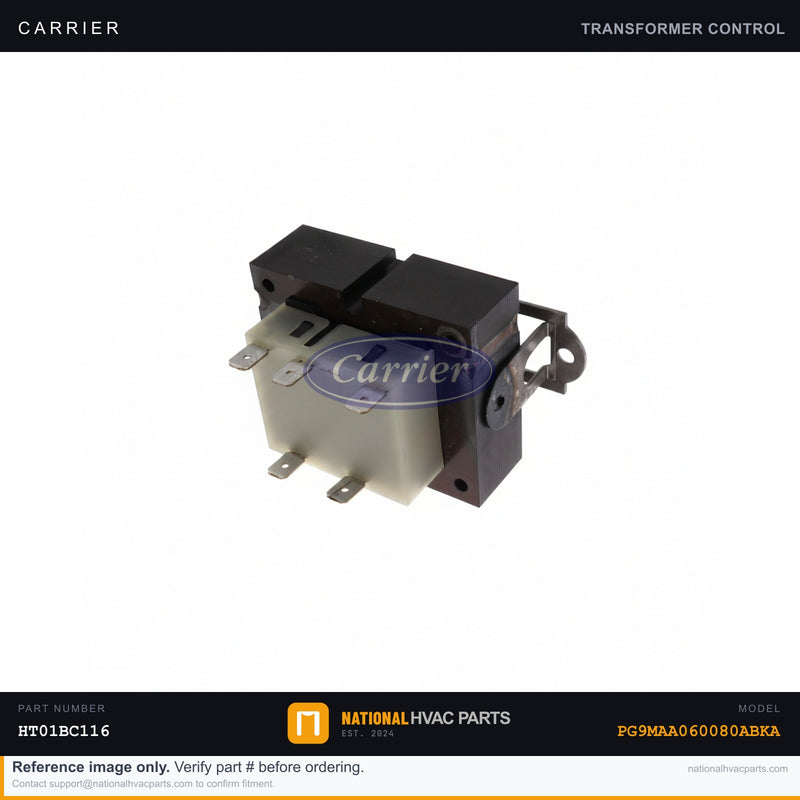

OEM Carrier 24V Transformer for PG9MAA060080ABKA Gas Furnace

The transformer is the power supply for the entire low-voltage control circuit in your Carrier PG9MAA060080ABKA furnace. It steps line voltage down to 24VAC to run the thermostat, gas valve, relays, inducer, and ignition control. When the transformer fails — an open primary winding, a shorted secondary, or damage from a pinched thermostat wire — the whole control side goes dead. Homeowners notice a thermostat with no display (or a frozen screen), no response to a call for heat, a completely unresponsive furnace, sometimes a faint electrical hum or a burnt smell, and on many units a blown low-voltage fuse on the control board. Specs: This is a Class 2 step-down control transformer with a 24VAC secondary and an OEM VA rating (commonly 40 VA) sized to carry the furnace's gas valve and relay loads without sagging. Primary tap matches the furnace's incoming line voltage. A good unit reads close to 24-28VAC at the secondary under load; an open or sagging output points to a failed transformer. OEM vs Generic: Transformers look interchangeable but aren't. Undersized aftermarket units with lower VA ratings sag under the gas valve's inrush, causing intermittent dropouts and chattering relays, while a wrong secondary voltage stresses the board and valve coil. The genuine Carrier transformer delivers the correct, stable 24V the control circuit was engineered around. Install: Difficulty 2/5. Tools: 1/4" nut driver, screwdriver, and a multimeter to confirm secondary output; label or photograph the wires before disconnecting. Safety first — line voltage is present, so kill power at the breaker before touching the transformer. Ships same business day from our stocked warehouse on orders before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PG9MAA060080ABKA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.

Shipping & Returns

Same-day shipping on orders before 3 PM CST. Standard delivery 2-5 business days, express options available at checkout. 30-day hassle-free returns on uninstalled parts — free return shipping included. 1-year OEM factory warranty coverage.
