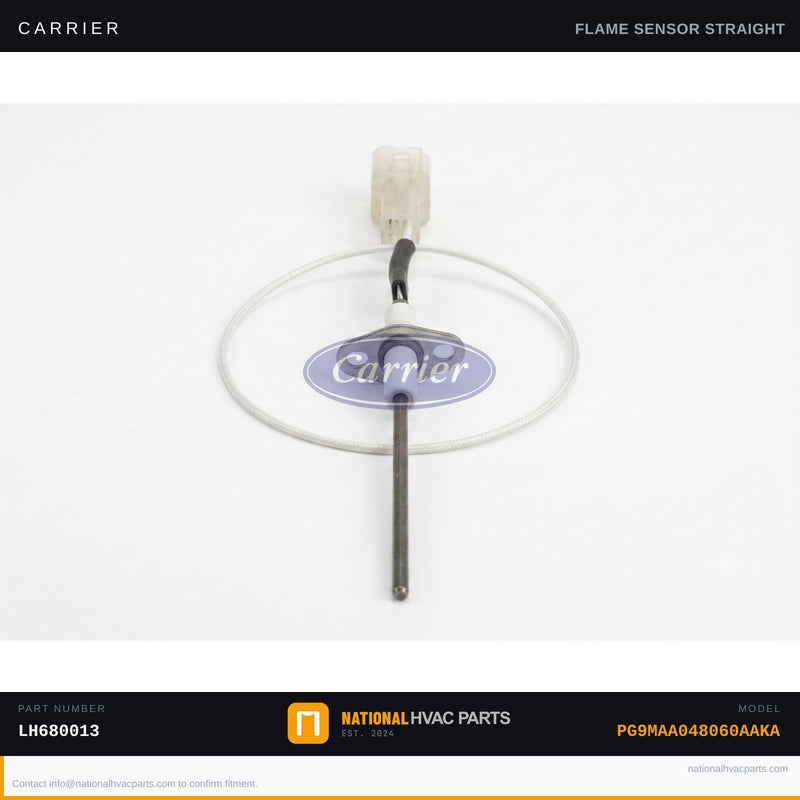

OEM Carrier Straight Flame Sensor LH680013 for Model PG9MAA048060AAKA

This is the genuine OEM straight flame sensor for the Carrier PG9MAA048060AAKA gas furnace, sold under OEM part number LH680013. The flame sensor is a small but critical safety component — a metal rod that sits in the burner flame and passes a micro-amp current through the flame to prove combustion. When it works correctly, the control board receives confirmation that the burner is lit and continues the heating cycle. When the sensor rod becomes oxidized, coated with residue, or fails entirely, the board can no longer detect the flame signal and shuts off the gas valve within 5–8 seconds as a safety measure, causing the furnace to lock out or repeatedly short-cycle without heating your home.

• OEM Part Number: LH680013 | Straight flame sensor rod | Factory-matched geometry and rod composition for the Carrier PG9MAA048060AAKA furnace
• OEM vs Generic: This is the genuine Carrier factory part — not an aftermarket approximation. OEM sensors maintain the exact rod alloy and bracket tolerances specified by Carrier engineers, ensuring reliable micro-amp flame signal readings that aftermarket rods can't always guarantee.
• Install Difficulty: 1/5 — One of the easiest furnace repairs available. Tools needed: 1/4" hex driver or nut driver, needle-nose pliers. Turn off the furnace and allow burners to cool before proceeding. The sensor mounts with a single screw; disconnect the wire lead, swap the rod, reconnect, and test.
• Warranty: 1-year OEM factory warranty. Ships same business day from our warehouse when ordered before 3 PM.

Compatibility: Designed for the Carrier PG9MAA048060AAKA gas furnace. Also cross-references part numbers LH33WZ516 and LH33WZ514. Always verify your existing part number on the sensor bracket or your furnace's service manual before ordering. Have questions about fitment? Our HVAC parts specialists confirm compatibility before you buy — reach out via chat or phone.
