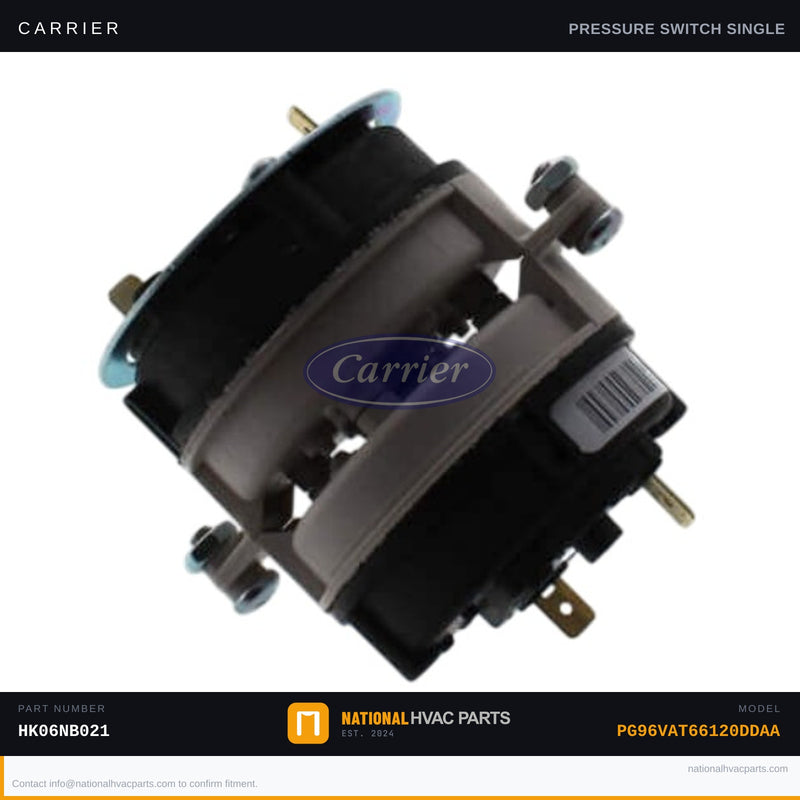

OEM Carrier Pressure Switch for PG96VAT66120DDAA Gas Furnace

The pressure switch is the safety device that proves your Carrier PG96 furnace's draft inducer is actually pulling combustion air and venting flue gas before the gas valve is ever allowed to open. It's a diaphragm switch linked by a rubber hose to the inducer housing. When the inducer builds enough negative pressure, the switch closes and signals the control board that it's safe to ignite. When the switch fails — or when a blocked vent, cracked hose, or condensate-clogged port keeps it from closing — the furnace spins the inducer, never lights, and locks out. Homeowners typically notice the inducer humming with no heat, repeated start attempts, or a flashing pressure-switch fault code. Specs: this is a negative-pressure (vacuum) switch rated to a specific trip point measured in inches of water column ('W.C.'). On a two-stage 96% furnace there are often dual set points for low and high fire. The set point stamped on the switch body MUST match your furnace's published spec — even a few hundredths of an inch W.C. off will cause nuisance lockouts or unsafe operation. Why OEM matters: the trip pressure and hysteresis are calibrated to your exact furnace and vent configuration. Generic switches with a 'close enough' set point either trip late, allowing ignition with poor draft, or trip early, causing constant lockouts. OEM guarantees the correct W.C. rating along with the right port count and barb size. Installation difficulty: 2 of 5. Tools: a 1/4-inch nut driver and a multimeter to confirm continuity. SAFETY: shut off power at the furnace disconnect before servicing, and inspect the hose and inducer port for blockage — a 'bad' switch is often just a clogged port. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PG96VAT66120DDAA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.

Shipping & Returns

Same-day shipping on orders before 3 PM CST. Standard delivery 2-5 business days, express options available at checkout. 30-day hassle-free returns on uninstalled parts — free return shipping included. 1-year OEM factory warranty coverage.
