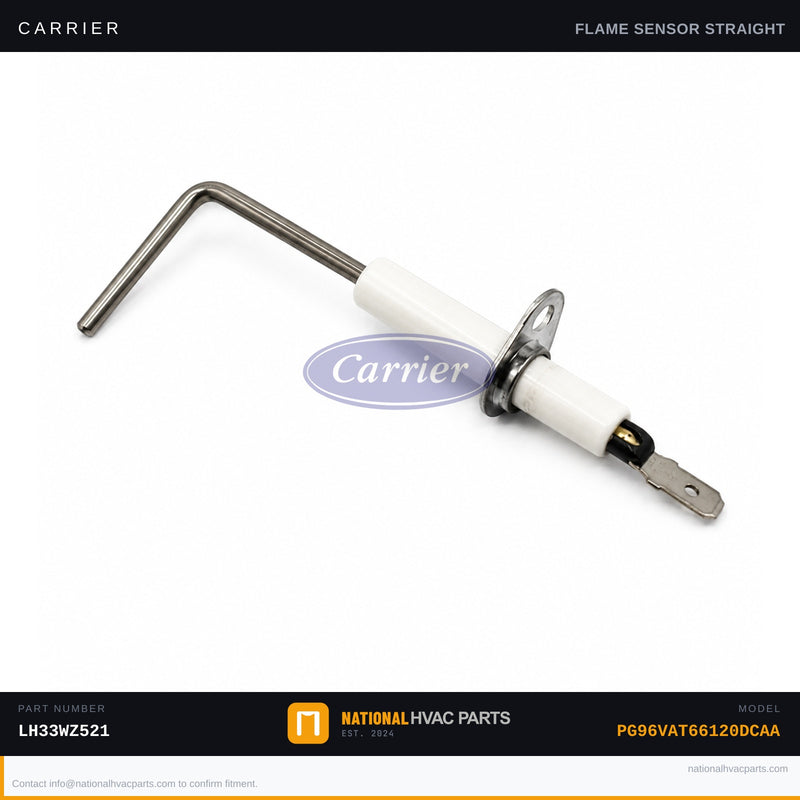

OEM Carrier Flame Sensor Replacement for PG96VAT66120DCAA Gas Furnace

The flame sensor is a single metal rod seated directly in the burner flame, and its only job is to confirm that the burners actually lit. It does this through flame rectification, conducting a tiny microamp DC current through the flame back to the integrated control board. When the rod fouls with oxide or fails, the board can no longer prove flame and shuts the gas valve within seconds. The result on your PG96VAT66120DCAA is the classic symptom: the furnace lights, runs three to five seconds, shuts off, and tries again, short-cycling on every heat call while almost no warm air reaches the registers. This OEM rod uses a Kanthal-type high-temperature FeCrAl alloy element rated to survive sustained 2,000F-plus burner temperatures without scaling prematurely. In service it produces a clean rectified signal of roughly 1 to 6 microamps DC, well above the board's typical 0.5 microamp prove-flame threshold. The ceramic insulator block and terminal are dimensioned to drop into the PG96VAT burner assembly at the correct flame-penetration depth, so no re-gapping is required. For a flame sensor, OEM geometry and alloy matter. Generic rods often use thinner or lower-grade metal that oxidizes faster, dropping the microamp signal below the board threshold within a single season and forcing another replacement. An off-spec rod can also sit too shallow in the flame, reading intermittent flame and triggering nuisance lockouts. Install difficulty: 2 of 5. Tools: a 1/4 in. or 5/16 in. nut driver, a multimeter capable of reading DC microamps to verify signal, and fine non-abrasive pad for cleaning. The number-one safety rule: shut the furnace off at the breaker AND close the manual gas valve before pulling the burner-area panel. Ships the same business day from our stocked warehouse on orders placed before 3 PM CST, backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PG96VAT66120DCAA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
