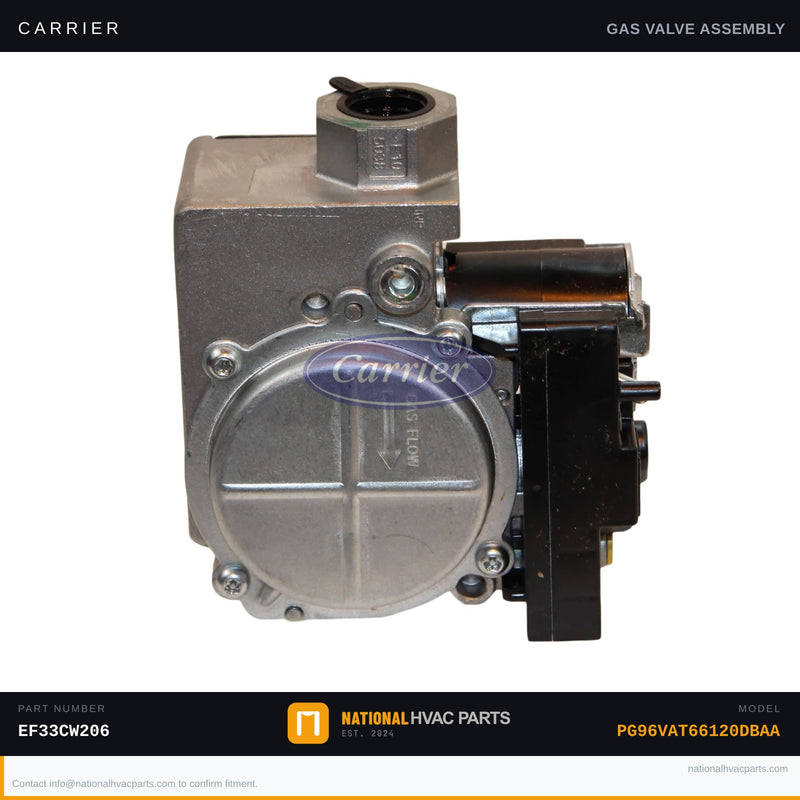

OEM Carrier Two-Stage Gas Valve 24V 3.5" W.C. for Model PG96VAT66120DBAA

This OEM combination gas valve is the factory-specified replacement for the Carrier PG96VAT66120DBAA 96% AFUE two-stage packaged gas furnace. The gas valve is a low-voltage controlled combination valve that meters and regulates natural gas flow from the supply line into the burner assembly. On two-stage furnaces, it operates at a reduced first-stage firing rate before stepping up to full second-stage capacity, delivering both efficiency and comfort. When this valve fails, symptoms include a complete no-heat condition, burner lockout after the igniter glows, or the furnace running only on one stage. Do not attempt to repair a faulty gas valve — always replace it.

• Specs: Two-stage combination gas valve | 24 VAC coil voltage | 3.5" W.C. outlet pressure | 1/2" inlet × 1/2" outlet | ~5" valve length | Natural gas (LP conversion kit available separately) | Carrier OEM part number EF33CW206 (superseded by EF33CW152)
• OEM vs Generic: This is a Factory Authorized Parts (FAP) OEM valve manufactured to exact Carrier design specifications — not a generic aftermarket clone. OEM valves maintain agency safety listings, preserve equipment warranty, and meet proprietary design life testing standards that third-party alternatives cannot match.
• Install Difficulty: 4/5 — Gas valve replacement is a licensed-technician job in most jurisdictions. Required tools: 1/2" and 3/8" flare wrenches, manometer for outlet pressure verification, leak-check solution, multimeter for coil voltage confirmation. Always shut off gas supply and power before beginning. Verify outlet pressure at the tap after installation.
• Warranty: 1-year OEM factory warranty on parts. Ships same business day from our warehouse when ordered before 3PM local time.

Compatibility: Designed for the Carrier PG96VAT66120DBAA two-stage 96% AFUE packaged gas furnace. Also fits select Bryant and Payne models using the EF33CW206 / EF33CW206A specification — verify your data plate before ordering. Our fitment team is available to confirm compatibility prior to purchase. Order now and ship today.
