OEM Carrier Hot Surface Igniter Replacement for PG96VAT66120DAAA

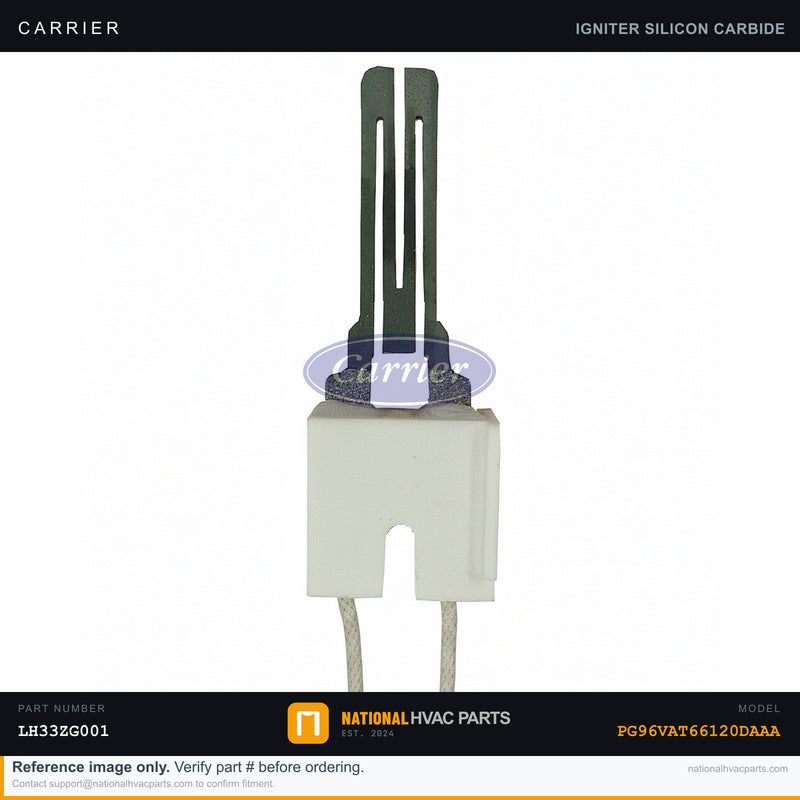

The hot surface igniter glows red-hot to light the burners on every heat call from your PG96VAT66120DAAA. When it cracks or burns open, the inducer still runs and you can hear the gas valve click, but the burners never light. The furnace runs two or three ignition trials, then locks out, leaving you with no heat and usually a specific igniter or lockout flash code on the diagnostic LED. A no-glow igniter is one of the single most common no-heat failures on this platform. This OEM igniter is a silicon nitride element, which is far more durable and thermal-shock resistant than the legacy silicon carbide igniters it replaces. It draws roughly 0.5 to 2.0 amps at 120V with a cold resistance in the range of about 40 to 75 ohms, much sturdier than the fragile 11 to 19 ohm silicon carbide style that chips at a touch. The mounting bracket and 2-pin connector are keyed for the PG96VAT burner box. Igniter resistance and element mass determine how hot and how fast it glows during the board's timed ignition trial. A generic igniter with the wrong resistance may never reach ignition temperature in that window, giving you repeated lockouts, or it over-drives and burns out within months. Silicon nitride OEM elements last dramatically longer than the cheap silicon carbide replacements sold as universal fits. Install difficulty: 2 of 5. Tools: a 1/4 in. nut driver, a 5/16 in. nut driver, and clean gloves, because skin oil on the element creates hot spots that crack it, so never touch it bare-handed. The number-one safety rule: shut off the furnace breaker AND the manual gas valve, and let the old igniter cool, before servicing. Ships the same business day from our stocked warehouse on orders placed before 3 PM CST, backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PG96VAT66120DAAA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.

Shipping & Returns

Same-day shipping on orders before 3 PM CST. Standard delivery 2-5 business days, express options available at checkout. 30-day hassle-free returns on uninstalled parts — free return shipping included. 1-year OEM factory warranty coverage.
