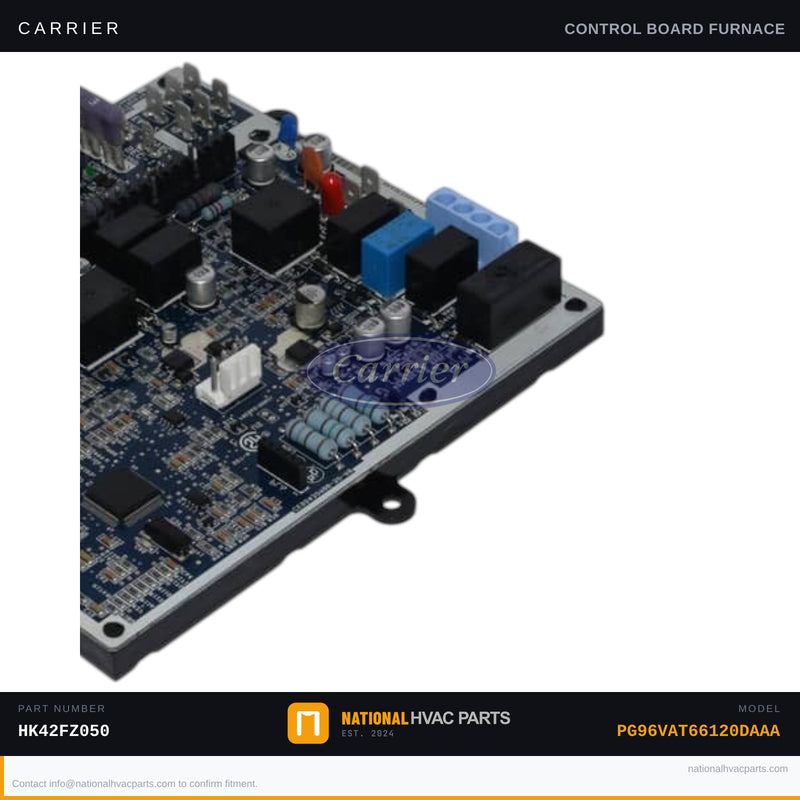

OEM Carrier Furnace Control Board Replacement for PG96VAT66120DAAA

The integrated furnace control (IFC) board is the brain of your PG96VAT66120DAAA. It sequences the inducer, igniter, gas valve, and blower; enforces the safety interlocks for the pressure switch, high-limit, and flame sensor; and stores the diagnostic LED fault codes you read during service. When the board fails you typically see no response at all to a thermostat call, a blower that will not start or will not shut off, a dead diagnostic LED, or erratic flash codes that do not point to any single failed component. This OEM board carries the full relay complement for the two-stage 96% AFUE PG96VAT platform: line-voltage relays for the blower heat and cool taps, the inducer, and the humidifier/EAC terminals, plus the low-voltage R/W1/W2/G/Y/C thermostat block and the onboard flame-rectification sense circuit. Its ignition timing and two-stage sequencing are matched to this furnace's gas valve. Control boards are not universal. Relay ratings, ignition timing, and flame-sense sensitivity are all tuned to this specific furnace. A generic or aftermarket board with under-rated relays will pit and eventually weld its contacts under blower inrush, while off-spec flame-sense thresholds cause repeated nuisance lockouts. OEM guarantees the firmware timing and terminal map match your existing wiring exactly. Install difficulty: 3 of 5. Tools: a 1/4 in. nut driver, a #2 Phillips, needle-nose pliers, and a multimeter to confirm 24V and 120V. Before unplugging anything, photograph or label every harness so it goes back the same way. The number-one safety rule: kill the furnace at the breaker, not just the thermostat, before touching the board, because line voltage is live at the relays. Ships the same business day from our stocked warehouse on orders placed before 3 PM CST, backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PG96VAT66120DAAA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.

Shipping & Returns

Same-day shipping on orders before 3 PM CST. Standard delivery 2-5 business days, express options available at checkout. 30-day hassle-free returns on uninstalled parts — free return shipping included. 1-year OEM factory warranty coverage.
