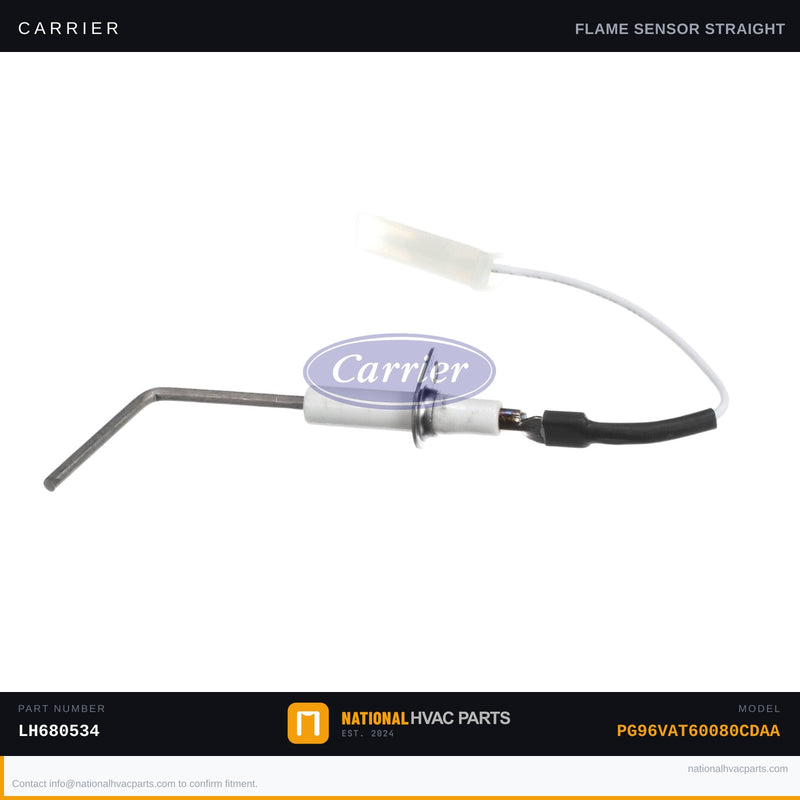

OEM Carrier Flame Sensor Rod for PG96VAT60080CDAA Gas Furnace

The flame sensor (flame-rectification rod) is the single metal rod mounted in the burner flame path of your Carrier PG96 gas furnace. After the igniter lights the burners, the control board pushes a tiny microamp current through the flame, and this sensor is what 'proves' the burners actually lit. When the rod oxidizes, carbons up, or cracks, the classic failure is a furnace that fires for 3–7 seconds and then shuts the gas off — over and over — because the board never sees a strong enough flame signal. After three or four failed tries it locks out, leaving you with no heat and often cold air from the registers. Specs: this is a single-rod sensor, not an igniter — it does NOT glow. It produces a flame-rectification signal typically in the 1–6 microamp range; once the reading falls below roughly 0.5–1.0 µA the board declares flame loss. The rod is a stainless/Kanthal alloy on a ceramic insulator with a specific length, bend, and mounting bracket so it sits in the hottest part of the flame envelope. Why OEM matters: a correct sensor has the right rod length, alloy, and bracket geometry to read a clean, strong microamp signal. Generic rods that are too short or made of thinner alloy sit at the cooler edge of the flame, read low, and cause the very intermittent lockouts you're trying to cure. Installation difficulty: 1 of 5. Tools: a 1/4-inch nut driver and fine emery cloth. SAFETY: turn off the gas and kill power at the furnace switch before reaching into the burner compartment. Handle the new rod by its bracket — don't touch the metal bare-handed and never sand a brand-new OEM sensor. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PG96VAT60080CDAA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.

Shipping & Returns

Same-day shipping on orders before 3 PM CST. Standard delivery 2-5 business days, express options available at checkout. 30-day hassle-free returns on uninstalled parts — free return shipping included. 1-year OEM factory warranty coverage.
