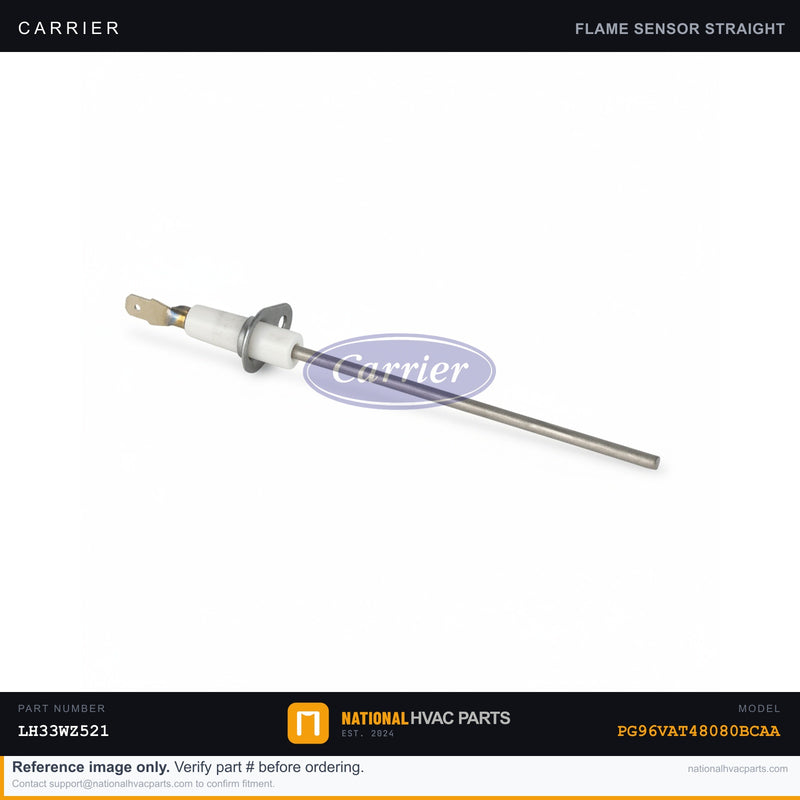

OEM Carrier Flame Sensor for PG96VAT48080BCAA Gas Furnace 96% AFUE

The flame sensor is a thin metal rod that sits directly in the burner flame and proves to the control board that the burners actually lit. It works by flame rectification: a tiny microamp current passes through the flame to ground. On your Carrier PG96VAT48080BCAA, when the rod becomes coated with oxide and carbon — or simply fails — the board can no longer 'see' the flame and shuts the gas valve within seconds as a safety response. The classic symptom is a furnace that lights, runs for only 3–7 seconds, then shuts off and short-cycles, often locking out after several attempts with no heat. This is an OEM single-rod flame rectification sensor with a porcelain insulator and a high-temperature stainless/Kanthal alloy rod. A healthy sensor passes a microamp signal — typically 1–6 µA DC — through the flame; once the reading drops below roughly 1 µA, the board drops out. Unlike the igniter, the flame sensor carries no line voltage; it is purely a low-current sensing element. Why OEM matters here: the rod alloy and insulator quality directly determine service life. Cheap generic sensors use lower-grade rod material that oxidizes far faster, putting you right back into short-cycling within a single season, and their inferior porcelain insulators can crack and ground out the signal. The OEM sensor's geometry also positions the rod correctly in this furnace's flame for a stable, reliable microamp reading. Install difficulty: 1/5 — one screw and one spade connector. Tools needed: 1/4" nut driver, fine emery cloth or a Scotch-Brite pad (never gritty sandpaper) for cleaning, and a multimeter set to DC microamps to verify. #1 safety warning: turn off the gas and kill the furnace breaker before removing the sensor. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PG96VAT48080BCAA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
