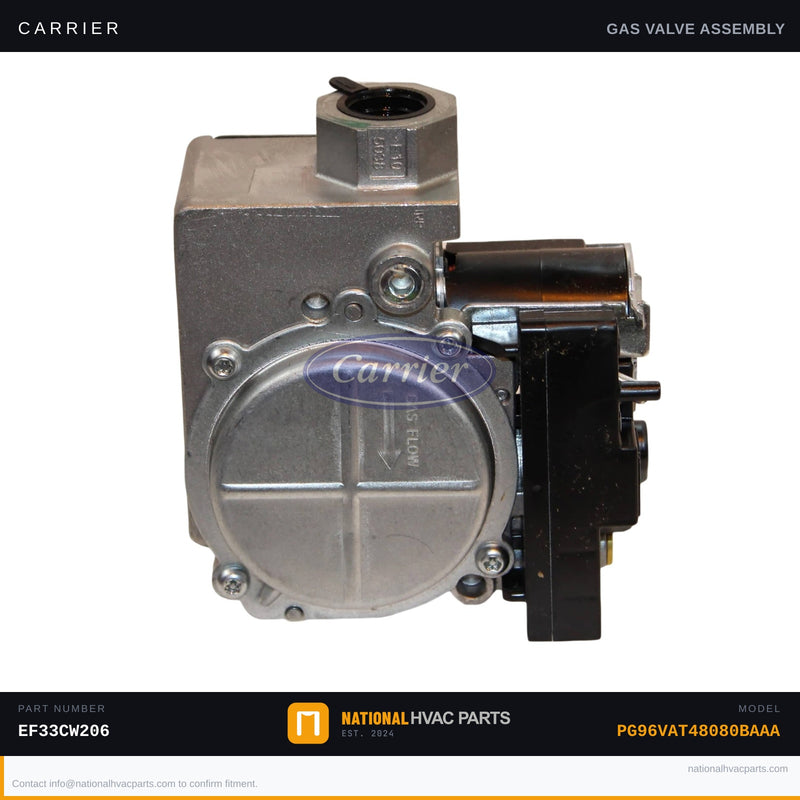

OEM Carrier Two-Stage Gas Valve 24V 3.5" WC for Model PG96VAT48080BAAA

This OEM two-stage combination gas valve is the factory-specified replacement for the Carrier PG96VAT48080BAAA 96% AFUE variable-speed gas furnace. Manufactured by White-Rodgers to Carrier's exact specifications, this valve precisely regulates natural gas flow into the combustion chamber across both first-stage (low fire) and second-stage (high fire) operation. When this valve fails, the furnace will typically attempt ignition, light briefly, then lock out — or produce no heat at all, with the inducer running continuously as the board cycles through retries. This is a critical safety and combustion component; using an exact OEM replacement ensures correct gas pressure regulation, leak-proof seals, and code-compliant installation.

• Specs: 24 VAC low-voltage control | 3.5" W.C. outlet pressure (natural gas) | 1/2" NPT inlet × 1/2" NPT outlet | Approx. 5" valve length | Two-stage operation (low fire / high fire) | Convertible to LP/propane with kit
• OEM Part Numbers: Replaces Carrier/Bryant/Payne EF33CW206 (also EF33CW206A); current OEM equivalent EF33CW152; White-Rodgers cross-reference 36J56-503. Always verify your unit's data plate before ordering.
• Install Difficulty: 4/5 — Gas valve replacement is a high-skill repair. Shut off gas supply at the shutoff valve before beginning. Tools required: adjustable wrench, pipe thread sealant (gas-rated), manometer for outlet pressure verification, and leak-detection solution. Professional installation strongly recommended. Always verify gas pressure after installation and check all connections for leaks before restoring power.
• Warranty: 1-year OEM factory warranty against defects. Ships same business day from our warehouse. Carefully packaged to prevent transit damage.

Compatibility: Fits Carrier model PG96VAT48080BAAA 96% AFUE packaged gas furnace. Also fits compatible Bryant and Payne models using the same EF33CW206 / EF33CW206A specification. Confirm your unit's part number on the data plate or wiring diagram before ordering. Our fitment team is available to verify compatibility — contact us before you buy.
