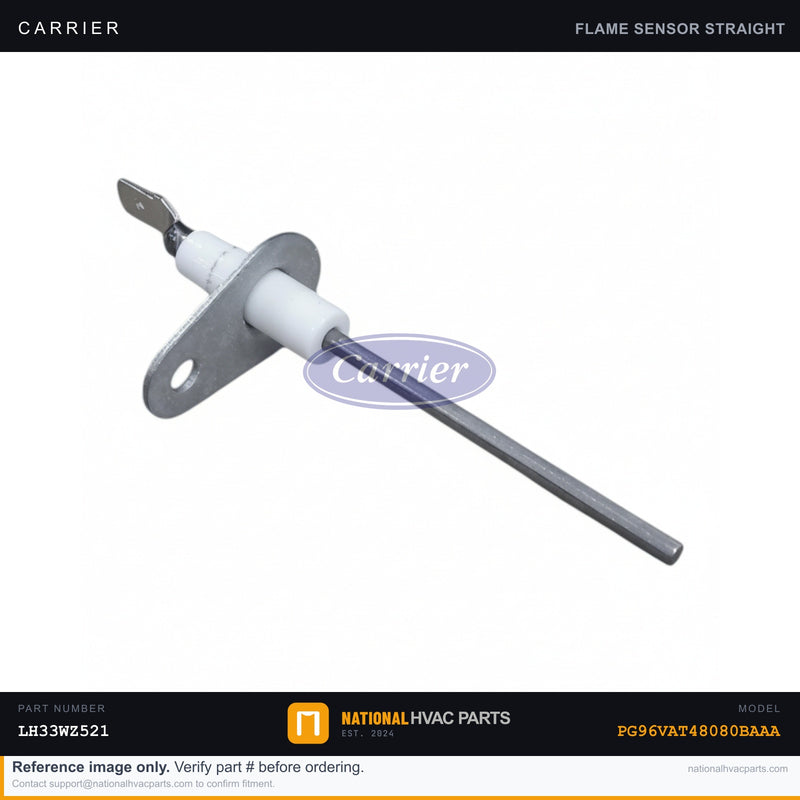

OEM Carrier Flame Sensor for Performance 96 PG96VAT48080BAAA

The flame sensor on your Carrier Performance 96 PG96VAT48080BAAA furnace is a single-rod safety device that confirms a flame is actually present after the igniter fires. It works on flame rectification: the control board sends a small AC microamp signal through the rod, and the ionized flame converts it to DC current. When the rod oxidizes, cracks, or gets coated with carbon and silica, that microamp signal drops below threshold. The board can no longer 'prove' the flame, so it shuts the gas valve within seconds as a safety measure. Homeowners notice this as a furnace that lights, runs 3-7 seconds, then snuffs out and tries again — classic short-cycling — often locking out after three or four failed attempts with the burners refusing to stay lit. This is an OEM single-rod Kanthal/stainless flame rod with the correct mounting bracket geometry and lead length for the PG96VAT cabinet. A healthy sensor reads a flame signal of roughly 1.5-6 microamps DC; anything under ~0.8 µA will cause dropout. The ceramic insulator is rated for repeated high-temperature cycling without tracking to ground. Why OEM matters here: aftermarket rods often use thinner wire and lower-grade ceramic that oxidizes faster and develops insulation leakage, giving you a sensor that works for one season then resumes the short-cycling fault. The OEM rod position is matched to the burner flame envelope so it sits in the hottest, most-ionized part of the flame for a stable, strong signal. Install difficulty: 1 of 5. Tools: 1/4" nut driver and fine emery cloth. SAFETY: turn off the furnace at the breaker AND close the gas shutoff before removing the sensor. Reseat the rod fully — a loose ground is the most common false fault. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PG96VAT48080BAAA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
