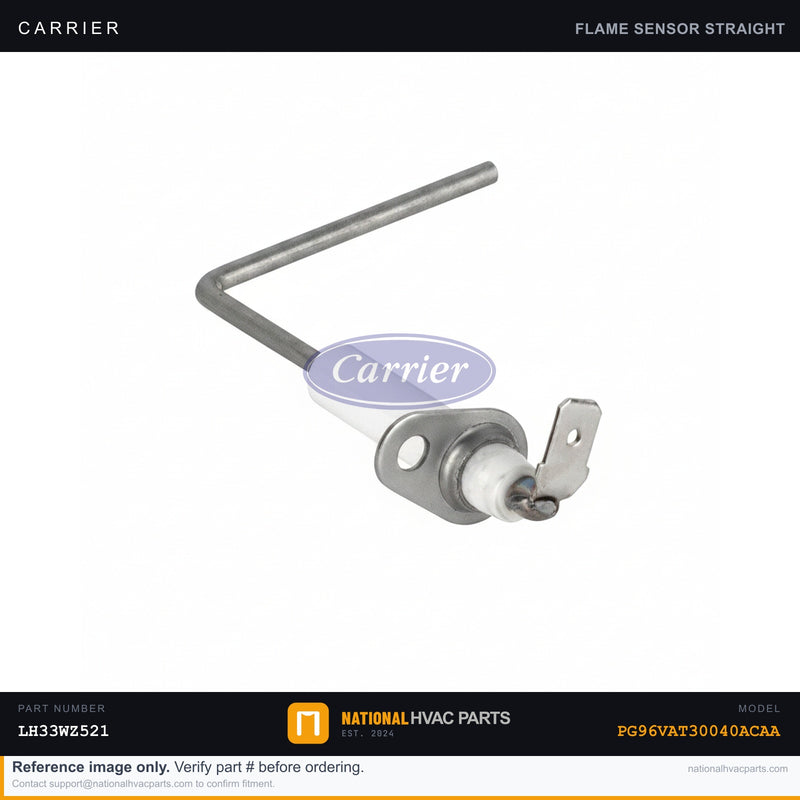

OEM Carrier Gas Furnace Flame Sensor Rod for PG96VAT30040ACAA

The flame sensor is a slender rod that extends into the burner flame and proves ignition to the control board through flame rectification — a tiny microamp current flowing through the flame to ground. As oxide and carbon build up on the rod, that current weakens until the board can no longer see the flame. The result on your Carrier PG96VAT30040ACAA is textbook short-cycling: the burners light, run 5-10 seconds, then the gas shuts off and the furnace retries, looping until it locks out with a flashing fault code and no heat. It's one of the most common cold-morning no-heat failures and often just needs a clean sensor or a fresh rod. The part is a single stainless/Kanthal sensing rod on a ceramic insulator terminated in a 1/4" male spade. A good sensor passes a few microamps of flame current (commonly 4-6 µA; lockout near 0.5-1 µA), and the ceramic must be crack-free — a hairline fracture shunts the signal to the mounting bracket and reads as no flame. Genuine Carrier rods use the correct length and standoff so the tip sits in the hottest, most conductive part of the flame. OEM matters because off-brand rods are often mis-sized or built with brittle ceramic that fractures under thermal cycling, producing weak flame current and nuisance lockouts even with perfectly firing burners. Install difficulty: 1 of 5. Tools: 1/4" nut driver and fine emery cloth or steel wool for cleaning. SAFETY: turn off the gas and kill the furnace breaker before pulling the sensor — the rod sits right at the live burner assembly. Ships same business day from our stocked warehouse on orders before 3 PM CST. 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PG96VAT30040ACAA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
