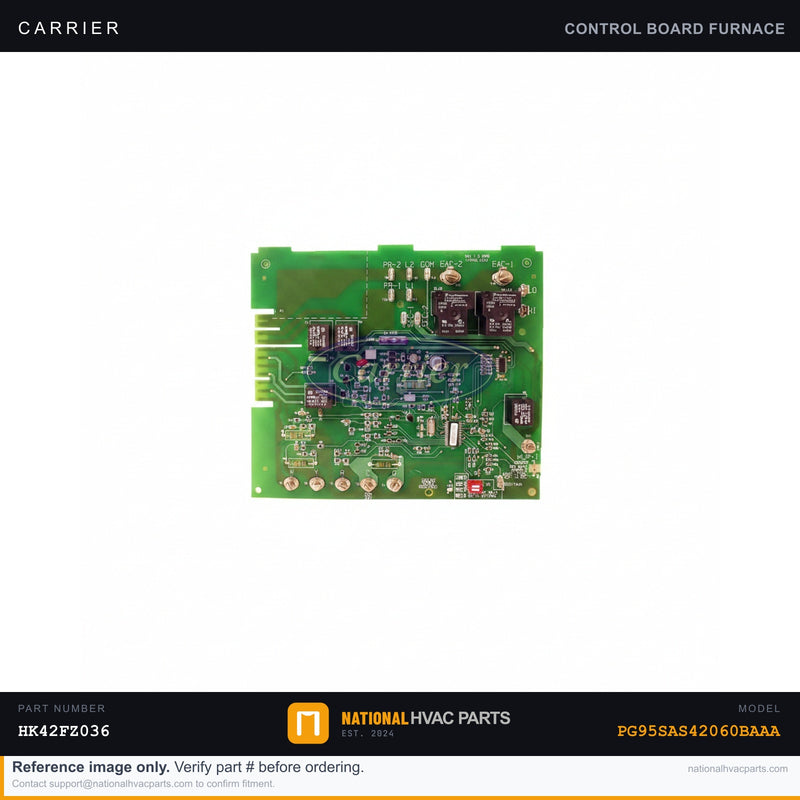

OEM Carrier Furnace Control Board for Model PG95SAS42060BAAA

The integrated furnace control board (IFC) is the brain of your Carrier PG95SAS42060BAAA. It sequences the entire heat cycle — energizing the inducer, checking the pressure switch, powering the hot-surface igniter, opening the gas valve, monitoring the flame sensor, and timing the blower on and off. It also runs diagnostics and flashes fault codes through an onboard LED. When the board fails, symptoms range from a completely dead furnace (no LED, no inducer) to erratic behavior: blower running constantly, no ignition despite a good igniter, or random lockouts with no consistent fault code. A burnt smell or visibly scorched relay contacts on the board is a dead giveaway. This two-stage board carries the relays for the inducer motor, the multi-speed blower (low/high heat and cool taps), and both stages of the gas valve, plus the 24 VAC transformer circuit and thermostat terminal block. It must match the furnace's two-stage staging logic and blower configuration — board revisions are not always cross-compatible, so confirm the printed part/revision number. Why OEM matters: the board's firmware controls ignition timing, flame-proving windows, and blower delays specific to this furnace. A generic or mis-revised board can use the wrong timing, mis-stage the valve, or run relays rated for lower amperage that pit and weld under the inducer/blower load, shortening its life and risking unsafe operation. Install difficulty: 3/5. Tools: 1/4" nut driver, needle-nose pliers, and a phone photo of every wire before you unplug it. Safety first: kill the breaker to the furnace before touching the board — the 120 VAC line terminals are live, and back-fed thermostat power can shock you. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PG95SAS42060BAAA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
