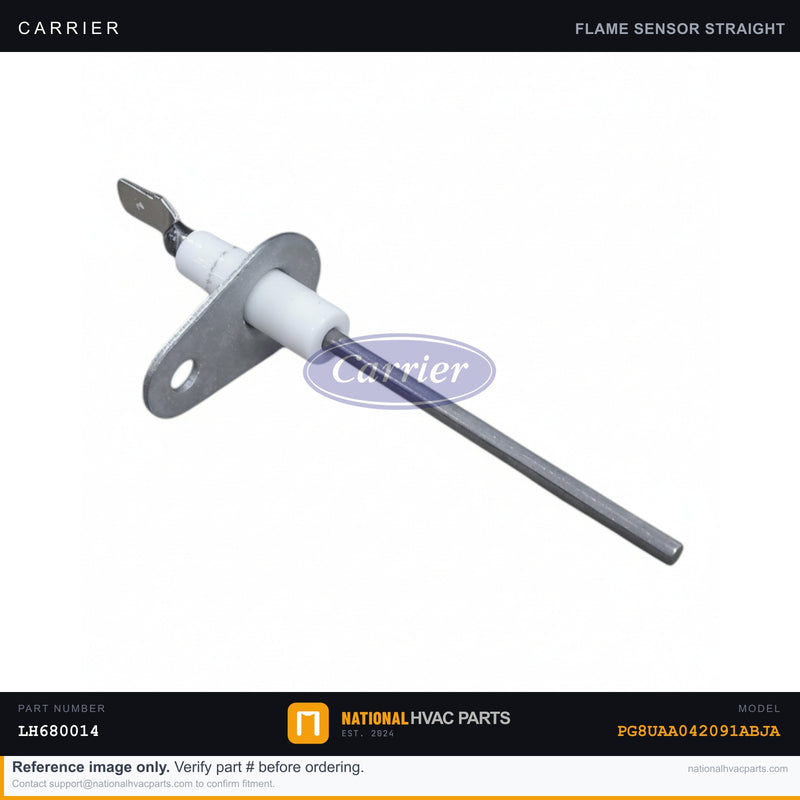

OEM Carrier Flame Sensor for PG8UAA042091ABJA Gas Furnace

The flame sensor in your Carrier PG8UAA042091ABJA package unit is a safety component that confirms the burners actually lit. After ignition, the control board passes a tiny microamp current through the flame via this rod; if it doesn't sense flame within a few seconds, the board shuts the gas valve to prevent a dangerous gas buildup. As the rod oxidizes over time, that signal drops below threshold. Homeowners notice the furnace lighting for several seconds and then shutting off, repeated on-off-on short-cycling, eventual ignition lockout after a few failed tries, and intermittent no-heat that's worse on cold mornings. This genuine OEM flame sensor uses the correct rod length, alloy, and ceramic insulator to seat at the proper depth in the burner flame and deliver a strong, stable flame-rectification signal — typically several microamps of DC current measured in series with a meter. A reading that's drifting low or reads zero in flame confirms a failed or fouled sensor. Why OEM matters: generic flame sensors often use lower-grade rod alloys that oxidize faster and ceramic insulators that crack and leak current to ground, producing weak signals and recurring lockouts. Wrong rod geometry positions the tip outside the flame envelope, so the board never sees adequate microamps even with a healthy burner. Installation difficulty: 1 of 5 — one of the easiest furnace repairs. Tools needed: 1/4" nut driver and a multimeter set to DC microamps. SAFETY — turn off gas at the shutoff valve and kill power at the breaker before removing the sensor. Never bend the rod to reposition it; handle it only by the ceramic base. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PG8UAA042091ABJA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.

Shipping & Returns

Same-day shipping on orders before 3 PM CST. Standard delivery 2-5 business days, express options available at checkout. 30-day hassle-free returns on uninstalled parts — free return shipping included. 1-year OEM factory warranty coverage.
