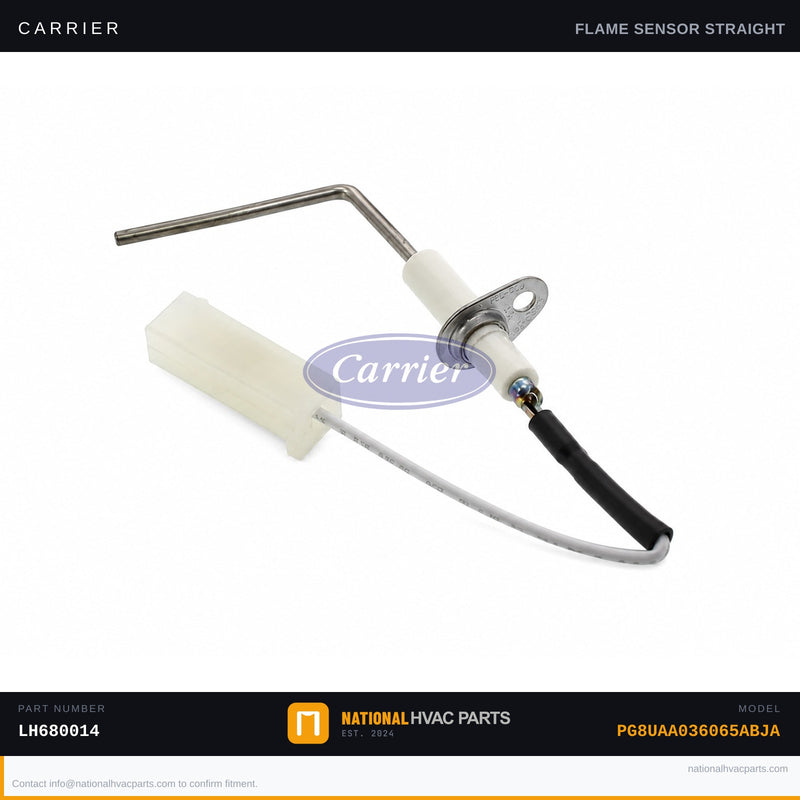

OEM Carrier Flame Sensor with Wire LH680014 for Model PG8UAA036065ABJA

This OEM flame sensor with wire (part number LH680014) is the factory-specified replacement for the Carrier PG8UAA036065ABJA gas furnace. The flame sensor is a critical safety component — its flame rod generates a small microamp current when it detects a burner flame, signaling the control board to keep the gas valve open. When the sensor's rod becomes coated with oxidation or carbon buildup, the current drops below the board's threshold and the furnace shuts down — typically 5 to 8 seconds after ignition. This results in repeated short-cycling, a no-heat condition, and often a fault code on the control board.

• Specs: OEM Carrier flame sensor assembly | Includes pre-attached wire harness | Factory-matched microamp sensitivity | Direct drop-in replacement for LH680014
• OEM vs Generic: This is a genuine Carrier OEM part, manufactured to exact factory tolerances for current sensitivity and rod geometry. Aftermarket sensors can have inconsistent microamp readings, causing nuisance lockouts or unsafe operation — OEM is always the safer, more reliable choice.
• Install difficulty: 2/5 — Turn off power and gas before beginning. Tools needed: 1/4" hex driver or flat-head screwdriver, needle-nose pliers. Disconnect the wire harness, remove the single mounting screw, swap the sensor, and reconnect. Always verify microamp signal with a multimeter after installation.
• Warranty: 1-year OEM factory warranty against defects. Ships same business day from our warehouse when ordered before 3 PM local time.

Compatibility: Designed for the Carrier PG8UAA036065ABJA packaged gas furnace. Always cross-reference part number LH680014 against your unit's data plate or wiring diagram before ordering. Our HVAC parts specialists are available to confirm fitment — don't hesitate to reach out before you buy.
