OEM Carrier Gas Furnace Flame Sensor Rod for PG8UAA036045ABJA

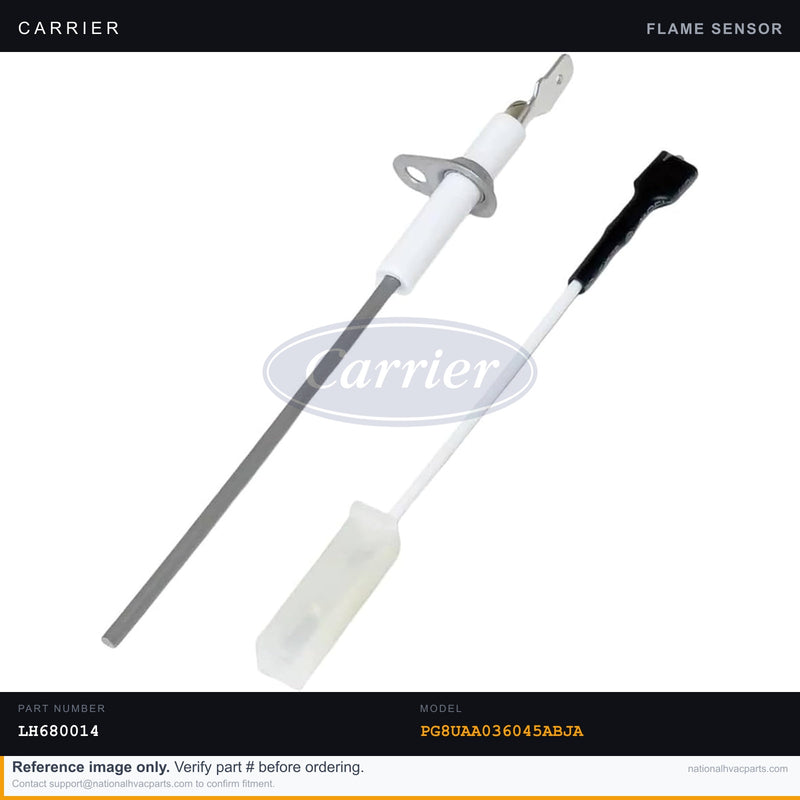

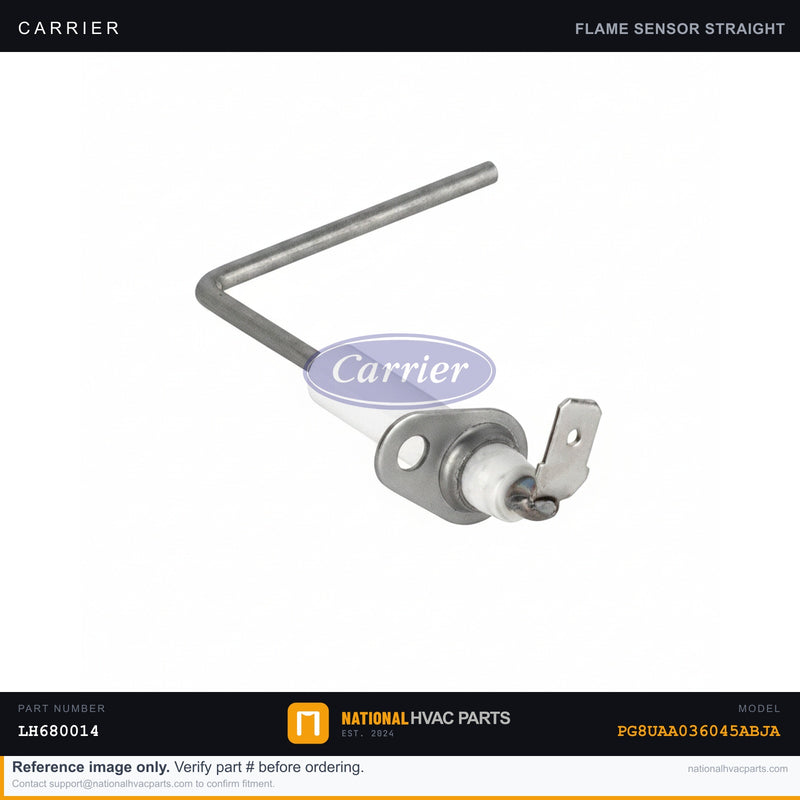

The flame sensor is a thin metal rod that sits directly in the burner flame and confirms to the control board that the gas has actually ignited. It works by flame rectification — the lit flame conducts a tiny microamp current that tells the board it's safe to keep the gas valve open. When the rod gets coated with oxidation or carbon, that signal drops and your Carrier PG8UAA036045ABJA will light for a few seconds, then shut the gas off and try again — the classic 'lights then dies' short-cycling no-heat complaint. After several failed tries the board locks out entirely. This is a single-rod flame sensor with a porcelain insulator and a spade or screw terminal matched to this Carrier package furnace. A healthy sensor passes roughly 1–6 microamps DC of flame-rectification current when the burner is lit; readings below about 0.5–1 µA mean the rod is too fouled or worn to hold the flame signal. The rod and bracket are sized to position the tip correctly in the flame. Why OEM matters here: the flame sensor is a safety device. A generic rod made of inferior alloy oxidizes faster and can produce a marginal signal that triggers intermittent lockouts — or a flaky reading that leaves you chasing a phantom fault. The OEM-spec rod uses the correct high-temperature alloy and length so the microamp signal stays strong and stable. Installation is a difficulty 1 of 5 — one screw and one wire. You'll need a 1/4" nut driver and fine emery cloth for future cleaning; a multimeter set to DC microamps helps verify the signal. SAFETY: shut off the gas supply and the furnace power at the breaker before removing the sensor, and never clean a sensor with regular sandpaper, which leaves grit that re-fouls it. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PG8UAA036045ABJA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
