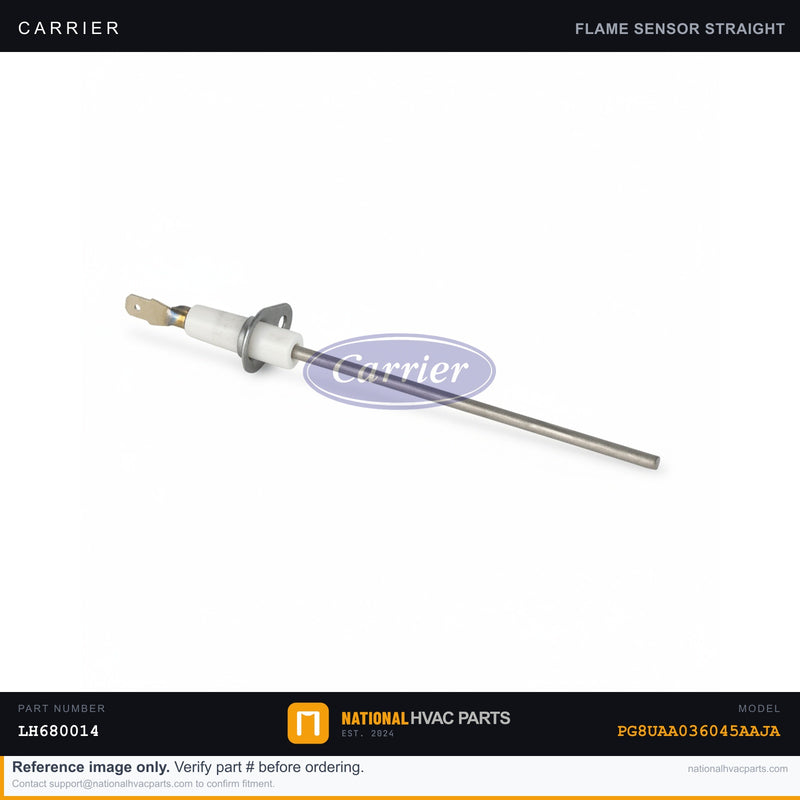

OEM Carrier Furnace Flame Sensor Rod for Model PG8UAA036045AAJA

The flame sensor in your Carrier PG8UAA036045AAJA furnace is a single metal rod that sits in the burner flame and confirms to the control board that gas is actually burning. It works by flame rectification — the lit flame conducts a tiny microamp current that tells the board it's safe to keep the gas valve open. When the sensor gets coated in oxide or weakens, that current drops and the board shuts the gas valve as a safety response. The hallmark symptom: the furnace lights, runs for 3–7 seconds, then the flame dies and it tries again — short-cycling on ignition — often ending in lockout with no heat after several attempts. This OEM sensor uses a Kanthal-style high-temperature alloy rod and porcelain insulator matched to the PG8UAA burner geometry, so the rod tip lands correctly in the flame envelope. A healthy flame-sense signal on this platform runs roughly 1–6 microamps DC; readings below about 0.5 µA cause dropout. Why OEM: generic rods are frequently the wrong length or bend, placing the tip outside the flame's hottest zone so the signal stays marginal even when clean. Cheaper insulators also track and leak current to ground, mimicking a dirty sensor and causing random lockouts that no amount of cleaning will fix. Install difficulty: 1 of 5. Tools: 1/4" nut driver, fine emery cloth or steel wool, and a multimeter capable of reading DC microamps in series. #1 safety warning: turn off the gas at the furnace shutoff AND kill power at the breaker before removing the sensor near the burners. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PG8UAA036045AAJA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.

Shipping & Returns

Same-day shipping on orders before 3 PM CST. Standard delivery 2-5 business days, express options available at checkout. 30-day hassle-free returns on uninstalled parts — free return shipping included. 1-year OEM factory warranty coverage.
