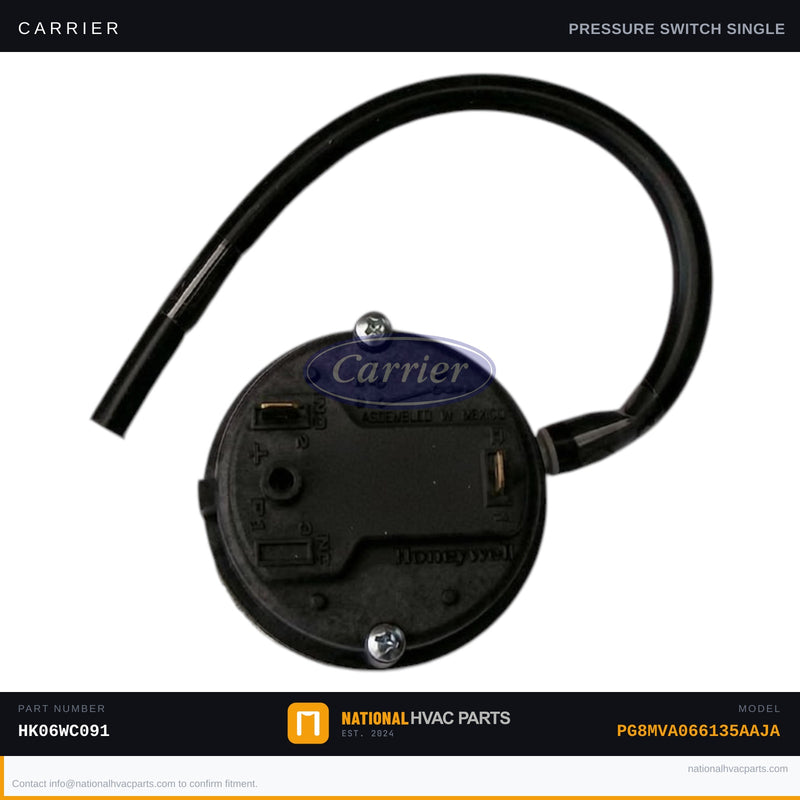

OEM Carrier Air Pressure Switch for PG8MVA066135AAJA Gas Furnace

The pressure switch on your Carrier PG8MVA066135AAJA is a critical safety device that proves the inducer motor is moving combustion air and that the venting is clear before the board allows ignition. It senses negative pressure through a rubber hose and closes its contacts to give the board a "go." When it fails or won't close, the furnace will run the inducer but never light — you'll see the inducer spin up, hesitate, then shut down with the board flashing a pressure-switch lockout code. A stuck-closed switch is even more dangerous and can cause nuisance lockouts or improper ignition. This is a single-pole, normally-open negative-pressure switch calibrated to a specific trip point measured in inches of water column (W.C.) — matched to this furnace's inducer and vent design. The set point is printed on the switch body; replacing with the correct W.C. rating is essential. Why OEM matters: pressure switches are calibrated components, not generic parts. An aftermarket switch with the wrong W.C. trip point will either nuisance-trip on a perfectly healthy furnace or — far worse — close too easily and allow ignition when venting is actually blocked, defeating the carbon-monoxide safety it exists to provide. The genuine Carrier switch is set to the factory pressure spec your furnace was engineered around. Install difficulty: 2 of 5. Tools needed: 1/4" nut driver, needle-nose pliers, and a manometer to verify actual inducer pressure against the switch rating. #1 safety warning: shut off power at the breaker before servicing, and inspect the sensing hose and condensate trap for blockage — a clogged drain is the most common cause of a "failed" switch. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PG8MVA066135AAJA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
