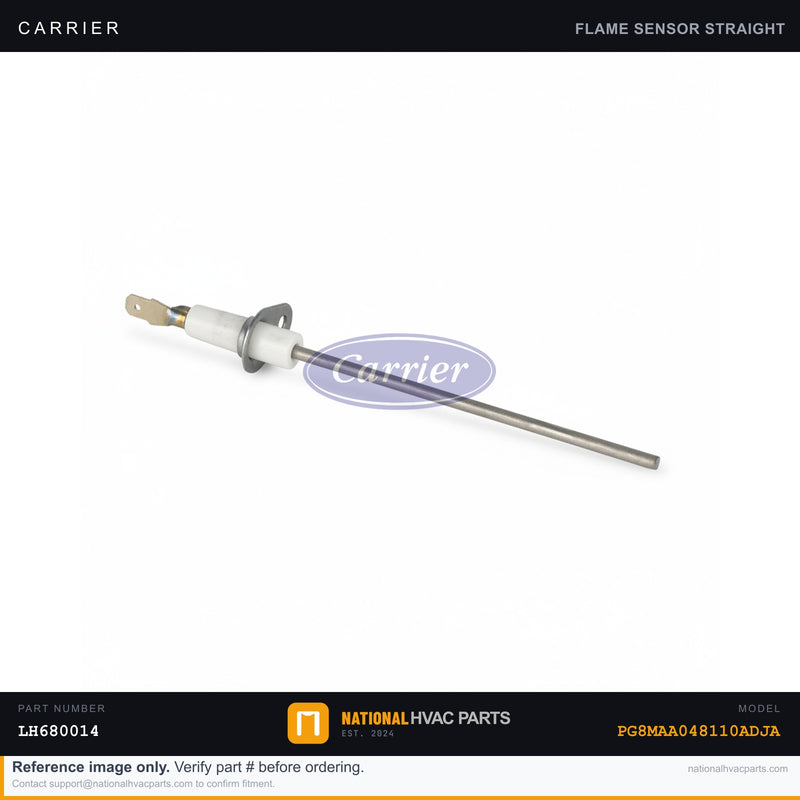

OEM Carrier Flame Sensor Rod for Gas Furnace PG8MAA048110ADJA

The flame sensor confirms that your Carrier PG8MAA048110ADJA furnace has actually established a flame. Once the burners light, this single rod sits directly in the fire and conducts a small microamp current back to the control board by flame rectification — the board's proof that gas is burning safely. As the rod accumulates oxidation, carbon, or white silica scale, that current drops below the board's threshold and the safety logic shuts the gas valve. You'll see the furnace ignite for a few seconds and then cut out — short-cycling — and after several failed attempts it locks out completely, leaving you with no heat and often a flashing fault code. This OEM rod is manufactured from a high-temperature stainless/Kanthal alloy that maintains a clean, stable signal (typically 1–6 microamps DC) at the precise length and insertion angle Carrier specified for this burner assembly. With a flame sensor, geometry and position are as critical as the metal. Generic sensors are often made from thinner, lower-grade steel and sit at a slightly different depth, so they oxidize faster and drift under the microamp threshold within a single heating season — returning you to nuisance lockouts. The genuine rod holds a strong, repeatable signal for years. Install difficulty: 2 of 5. Tools: 1/4" nut driver, fine emery cloth to clean the tip, and a multimeter set to DC microamps to read flame current. SAFETY: turn off the gas supply and kill power at the furnace switch or breaker before removing the sensor from the burner area. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PG8MAA048110ADJA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.

Shipping & Returns

Same-day shipping on orders before 3 PM CST. Standard delivery 2-5 business days, express options available at checkout. 30-day hassle-free returns on uninstalled parts — free return shipping included. 1-year OEM factory warranty coverage.
