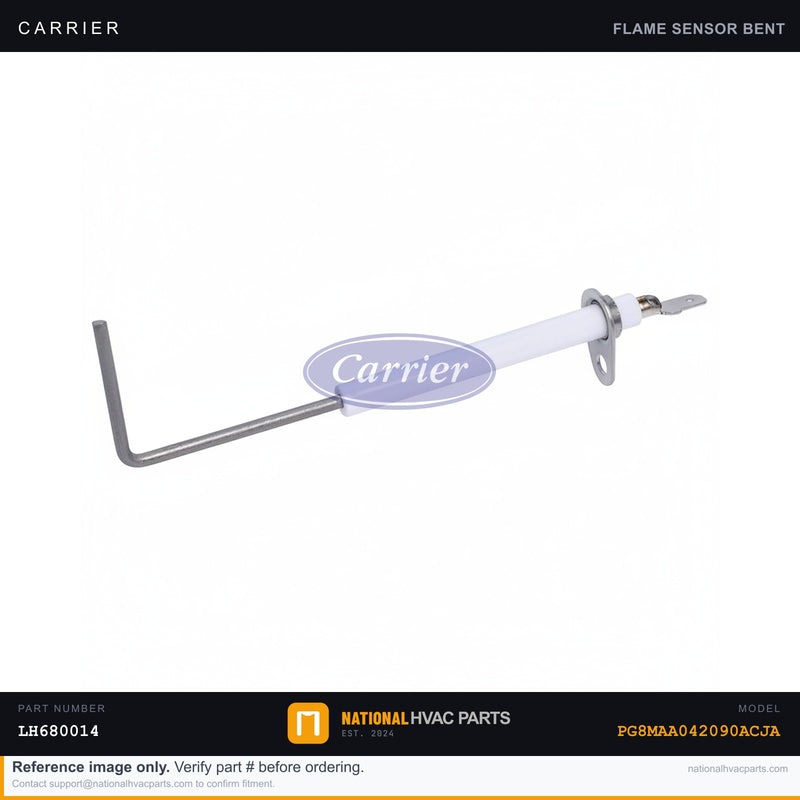

OEM Carrier Flame Sensor for PG8MAA042090ACJA Gas Furnace Unit

The flame sensor is the safety device that confirms your Carrier PG8MAA furnace actually lit after the igniter fires. It sits in the burner flame and generates a tiny rectified microamp current that tells the control board a flame is present. When the rod oxidizes or cracks, that signal drops and the board assumes there is no flame — so it shuts the gas valve within seconds. Homeowners notice this as short-cycling: the burners light, glow for 3-7 seconds, then snuff out, often repeating several times before the furnace locks out with no heat. This is a flame-rectification rod, typically Kanthal or stainless steel on a ceramic insulator. A healthy sensor passes roughly 2-6 microamps DC when bathed in flame; anything under ~0.5 µA triggers loss-of-flame faults. The OEM rod is matched to the burner geometry and insulator dielectric so the board reads a stable signal. Generic flame sensors often use thinner rods or lower-grade insulators that build silica/oxide film faster and read erratic microamps, causing nuisance lockouts months sooner. The OEM part keeps the signal clean and the safety circuit reliable. Install difficulty: 1 of 5. Tools: 1/4" or 5/16" nut driver and a multimeter set to DC microamps. SAFETY: shut off both the gas supply and electrical power at the furnace switch before removing the sensor — never service the burner assembly with gas live. Slide the rod out, transfer the wire, and reseat. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PG8MAA042090ACJA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
