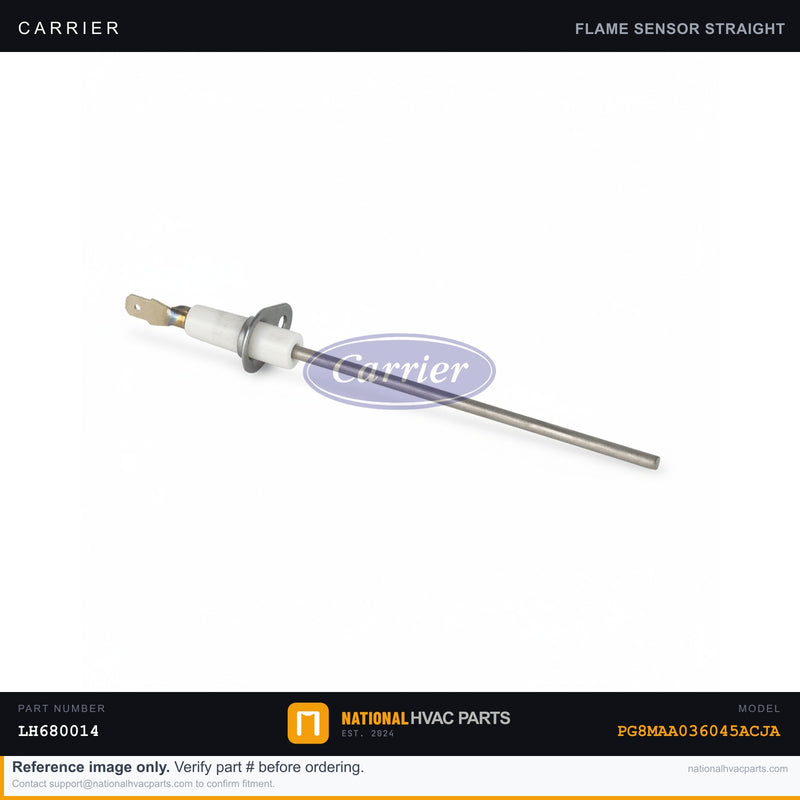

OEM Carrier Furnace Flame Sensor for PG8MAA036045ACJA Gas Pack

The flame sensor is the safety device that confirms your Carrier PG8MAA036045ACJA gas pack has actually lit a flame. Mounted in the burner assembly, it passes a tiny microamp current through the flame (flame rectification) and reports back to the control board. When the rod oxidizes or its porcelain insulator cracks, the board can no longer 'see' the flame and closes the gas valve within seconds. The telltale symptom is short-cycling: the burners light for 3-7 seconds, drop out, and the cycle repeats — frequently ending in a hard lockout with no heat at the worst possible time. Specs: This is a single-rod silicon-coated stainless steel flame-rectification sensor. A healthy sensor reads roughly 3-6 microamps of flame current on a multimeter set to DC microamps in series; below about 1.0 uA the board drops out. Resistance to ground should read effectively open — any leakage path indicates a cracked porcelain insulator. OEM geometry matches the burner spacing so the rod sits correctly in the flame envelope. OEM vs Generic: Flame sensing is unforgiving. Aftermarket rods often use thinner wire and lower-grade porcelain that oxidizes faster and cracks under thermal cycling, so they degrade within a season and bring the nuisance lockouts right back. An OEM sensor keeps the rod length and bend exact, so flame current stays in spec and the board reads a clean signal. Install (difficulty 2/5): Tools — 1/4" nut driver, fine emery cloth, and a multimeter to verify microamps. SAFETY: turn off the gas and kill the furnace breaker before opening the burner compartment. Remove one screw, unplug the spade connector, swap, and reseat. Ships same business day from our stocked warehouse on orders before 3 PM CST. 1-year OEM warranty. 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PG8MAA036045ACJA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.

Shipping & Returns

Same-day shipping on orders before 3 PM CST. Standard delivery 2-5 business days, express options available at checkout. 30-day hassle-free returns on uninstalled parts — free return shipping included. 1-year OEM factory warranty coverage.
