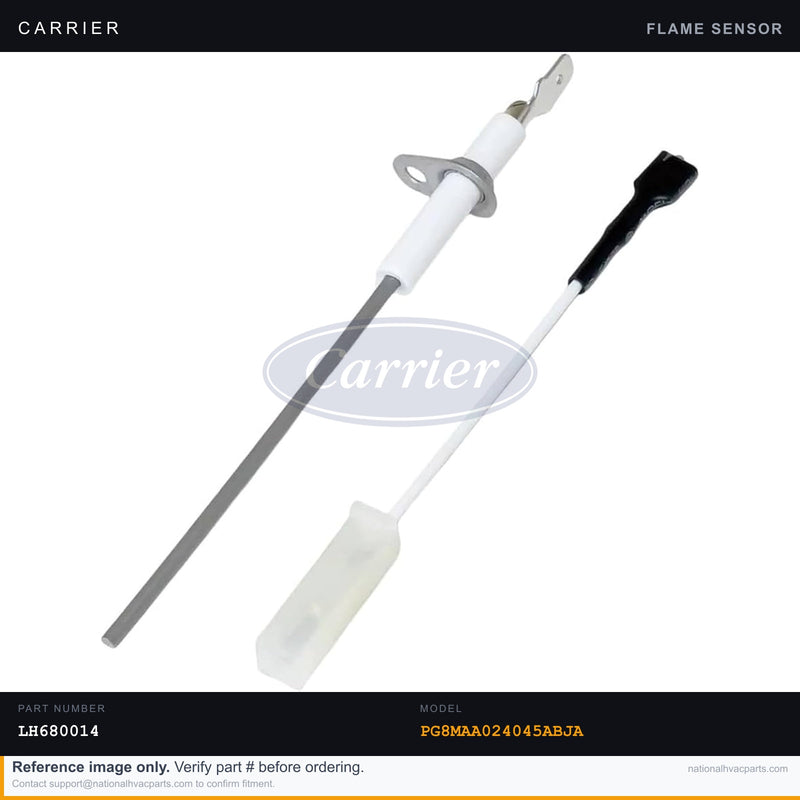

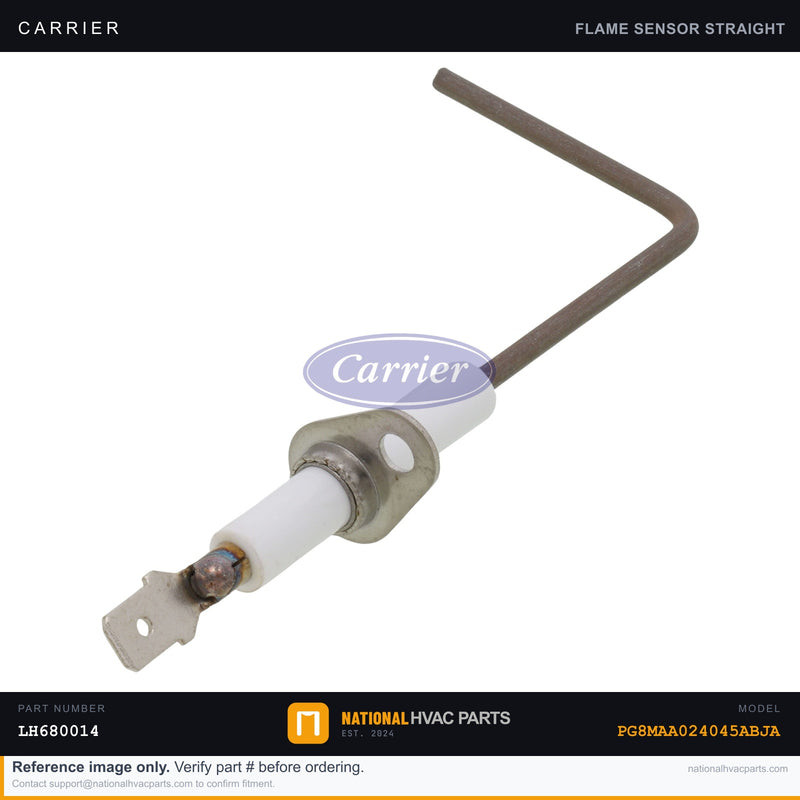

OEM Carrier Flame Sensor for PG8MAA024045ABJA Gas Package Unit

The flame sensor in your Carrier PG8MAA024045ABJA confirms the burners are actually lit before the system keeps gas flowing. It's a single metal rod that sits directly in the flame; through flame rectification it passes a tiny microamp current back to the control board to prove fire is present. If that signal drops out, the board closes the gas valve within seconds for safety. As the rod oxidizes or degrades you'll see the classic pattern: the furnace lights, runs 2–7 seconds, shuts off, retries two or three times, then locks out — leaving cold air with little more than a flash code to explain it. This OEM sensor uses the correct rod length, alloy, and ceramic insulator so it seats at the proper depth in the flame and returns a clean, stable microamp signal (a healthy reading is typically 2–6 µA DC). Rod geometry and metallurgy matter — a near-miss substitute won't sit in the flame envelope the way the burner assembly expects. Why OEM matters here: budget generic sensors often use thinner rods and lower-grade insulators that oxidize and crack faster, so a slightly cheaper part frequently lands you back in nuisance lockouts within a single heating season. The OEM rod holds its signal far longer. Install difficulty: 1/5 — among the simplest repairs on the unit. Tools: 1/4" nut driver, plus fine emery cloth if you want to clean the old rod before swapping. SAFETY: shut off the gas and kill the breaker before reaching into the burner area; the sensor sits inches from live burners and the gas manifold. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PG8MAA024045ABJA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.

Shipping & Returns

Same-day shipping on orders before 3 PM CST. Standard delivery 2-5 business days, express options available at checkout. 30-day hassle-free returns on uninstalled parts — free return shipping included. 1-year OEM factory warranty coverage.
