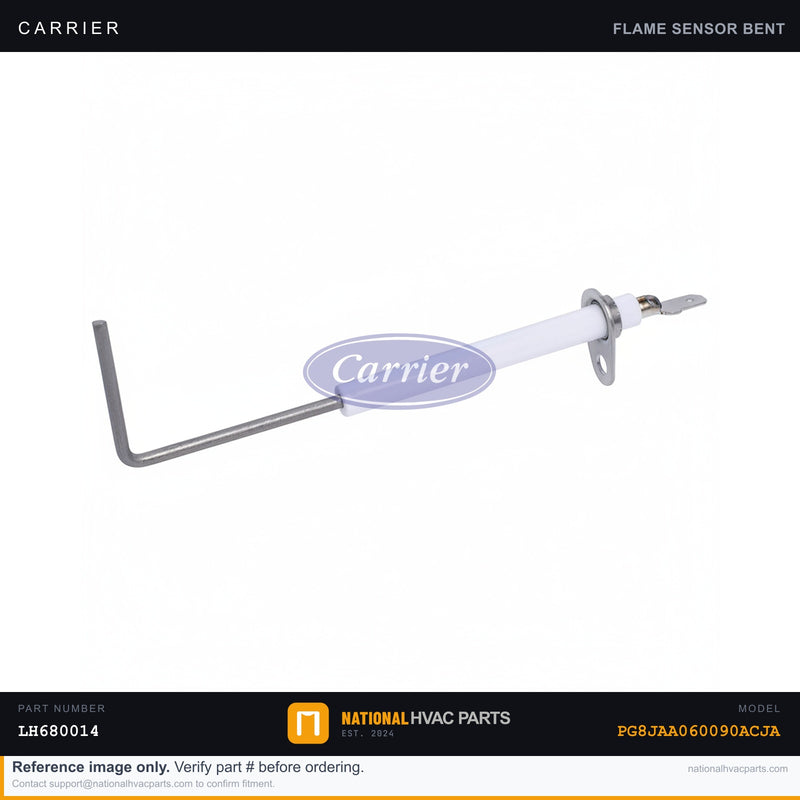

OEM Carrier Flame Sensor for PG8JAA060090ACJA Gas Furnace

The flame sensor is the safety device that confirms your Carrier PG8JAA060090ACJA furnace has actually lit a flame before the gas valve stays open. It works by flame rectification: the metal rod sits in the burner flame and conducts a tiny microamp current back to the control board. When the rod gets coated in oxide or silica scale, that current drops and the board can no longer 'see' the flame. The classic symptom is short-cycling on a call for heat — the burners ignite for 3 to 7 seconds, then shut off, retry two or three times, and finally lock out. Homeowners notice intermittent no-heat, repeated clicking, and warm air that never lasts. This is a single-rod sensor with a high-temperature Kanthal element and a ceramic insulator rated for continuous flame exposure. A healthy sensor reads a flame-signal current of roughly 1.5 to 6 microamps on a meter set to DC microamps in series; below about 0.7 µA the board drops the flame. The ceramic base resists cracking and carbon tracking that cause nuisance dropouts. Why OEM matters here: aftermarket sensors often use thinner rods and lower-grade ceramic that build up oxide faster and crack at the insulator, returning you to short-cycling within a season. The OEM rod geometry also positions correctly in the Carrier burner flame so the signal stays strong. Install difficulty: 1 of 5. Tools: 1/4" nut driver and a fine abrasive pad. SAFETY: turn off the furnace gas valve and kill power at the breaker before removing the sensor — never service with burners live. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PG8JAA060090ACJA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.

Shipping & Returns

Same-day shipping on orders before 3 PM CST. Standard delivery 2-5 business days, express options available at checkout. 30-day hassle-free returns on uninstalled parts — free return shipping included. 1-year OEM factory warranty coverage.
