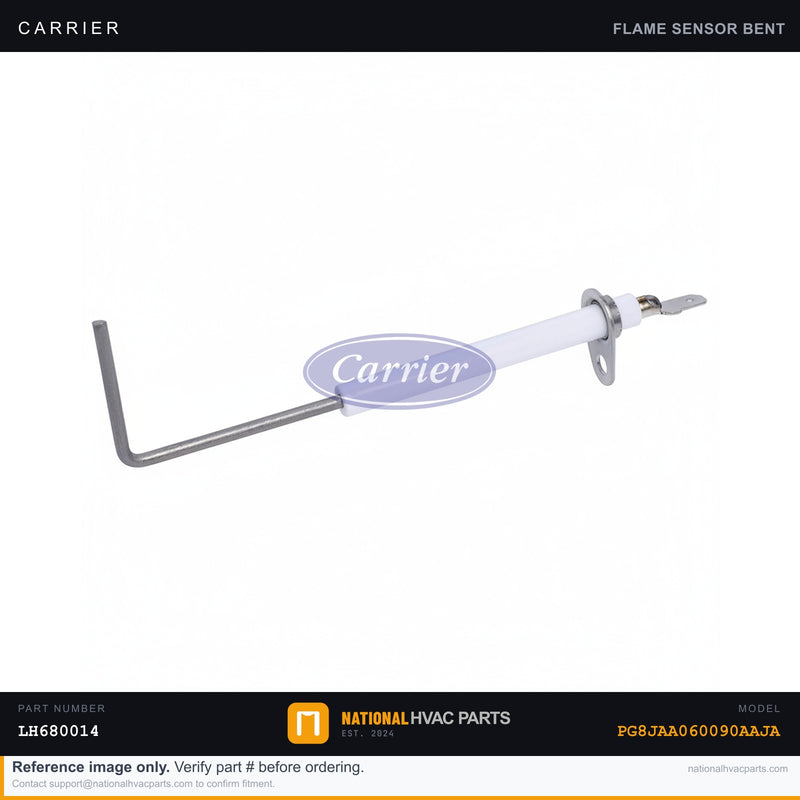

OEM Carrier Gas Furnace Flame Sensor Rod for PG8JAA060090AAJA

The flame sensor is the safety device that proves your Carrier PG8JAA060090AAJA burner has actually lit. It works by flame rectification: when the burner flame surrounds the rod, a tiny DC microamp current flows back to the control board, telling it gas is burning and keeping the gas valve open. When the rod becomes coated with oxide and carbon, or its porcelain insulator cracks, that signal collapses and the board shuts the gas valve within a few seconds. The unmistakable symptom: the furnace lights, runs for two to five seconds, then shuts off — over and over — before finally hard-locking out. The result is short-cycling and no heat on the coldest nights. Specifications: This is a single-rod sensor built with a high-temperature alloy element and a porcelain insulator. A healthy flame current typically reads between 1 and 6 microamps DC, measured by putting your meter in series on the µA scale. Rod length and position in the flame envelope must match this furnace for a stable signal. Why OEM matters: Alloy and insulator quality determine how long a sensor lasts. Generic rods oxidize faster, their insulators crack under repeated thermal cycling, and incorrect length or bend angle leaves the rod sitting outside the flame — producing a weak, drifting microamp signal and recurring lockouts. An OEM rod sits correctly in the flame and holds a strong, steady current. Installation: Difficulty 1 of 5. Tools needed: 1/4" nut driver and a microamp-capable multimeter. The #1 safety rule: turn off the gas supply and kill the breaker before removing the rod. Do not sand a new ceramic-coated sensor — it ships ready to install. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PG8JAA060090AAJA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.

Shipping & Returns

Same-day shipping on orders before 3 PM CST. Standard delivery 2-5 business days, express options available at checkout. 30-day hassle-free returns on uninstalled parts — free return shipping included. 1-year OEM factory warranty coverage.
