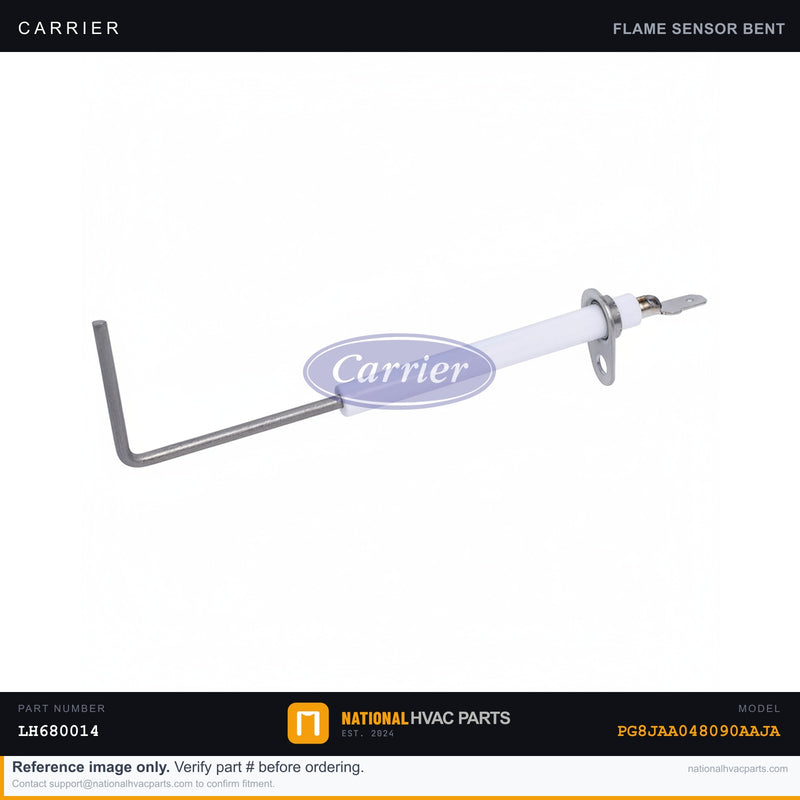

OEM Carrier Flame Sensor for PG8JAA048090AAJA Gas Package Unit

The flame sensor verifies that your Carrier PG8JAA048090AAJA has successfully lit. After the igniter heats up and the gas valve opens, this rod sits in the burner flame and uses flame rectification — the flame conducts a tiny microamp DC current to ground, confirming combustion to the control board. When the rod gets coated with oxide or carbon, that signal weakens, and the board closes the gas valve within seconds for safety. Homeowners typically see the burner light, run briefly, then cut out and re-try over and over before the furnace hard-locks with no heat. This is a single-rod stainless/Kanthal flame-sense element with a ceramic insulator and a bracket dimensioned for the PG8JAA burner assembly. A clean, correctly placed sensor reads roughly 1-6 microamps; when flame current falls below about 0.5 µA the control drops the heat call. The rod length and screw spacing are specific to this platform so the tip lands deep in the flame. Why OEM matters here: aftermarket rods often use thinner wire and looser bracket tolerances, positioning the tip in a cooler flame edge and yielding a weak, drifting microamp signal that triggers intermittent lockouts. The OEM sensor sits correctly and holds a stable, in-spec reading. Install difficulty: 1 of 5 — among the simplest furnace repairs. Tools: 1/4" nut driver or 5/16" socket and fine emery cloth (never sandpaper). #1 safety warning: TURN OFF THE GAS and cut power at the breaker before removing the mounting screw, and never touch the ceramic insulator with bare fingers — skin oils foul the rod. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PG8JAA048090AAJA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.

Shipping & Returns

Same-day shipping on orders before 3 PM CST. Standard delivery 2-5 business days, express options available at checkout. 30-day hassle-free returns on uninstalled parts — free return shipping included. 1-year OEM factory warranty coverage.
