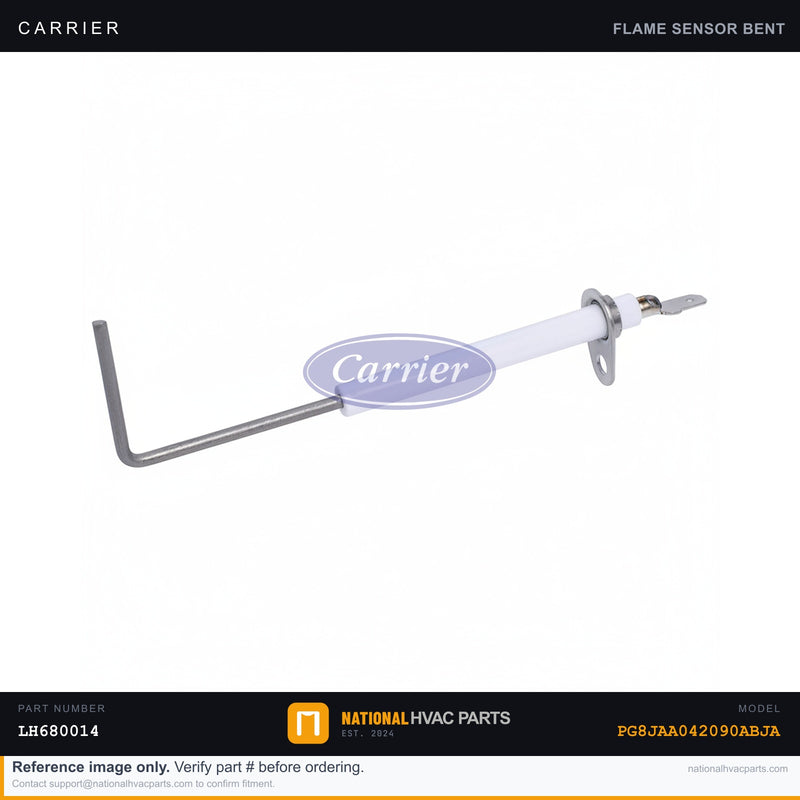

OEM Carrier Gas Furnace Flame Sensor Rod for PG8JAA042090ABJA

The flame sensor is a single metal rod positioned in the burner flame that proves the furnace actually lit. It works by flame rectification: the lit flame conducts a tiny microamp DC current to ground, telling the control board the burners are burning so it can keep the gas valve open. When the rod oxidizes or carbons over, that microamp signal drops below threshold and the board shuts the gas valve within seconds as a safety measure. The classic symptom is a furnace that lights for 3-5 seconds, then shuts off and tries again — short-cycling on a failed flame-proving signal, often leaving the home cold on the coldest mornings. This is a single-rod sensor with a ceramic insulator and a Kanthal/stainless sensing rod sized and bent to sit in the correct position within the PG8JAA042090ABJA burner flame envelope. A healthy circuit reads roughly 1-6 microamps DC of flame current; the OEM rod and insulator hold that reading reliably without leakage to ground. OEM matters because rod length, bend, and mounting position determine how much flame the sensor sees. A generic sensor that sits slightly off can read a weak, fluctuating microamp signal that drops out intermittently. The genuine Carrier rod restores the factory geometry and a clean, stable flame-current reading. Install difficulty: 1 of 5. Tools: 1/4" nut driver and, ideally, a multimeter set to DC microamps to verify flame current after install. SAFETY: shut off the gas supply and kill the unit breaker before removing the rod. Do not sand a new sensor — handle it by the porcelain only, since skin oils can foul the rod. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PG8JAA042090ABJA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.

Shipping & Returns

Same-day shipping on orders before 3 PM CST. Standard delivery 2-5 business days, express options available at checkout. 30-day hassle-free returns on uninstalled parts — free return shipping included. 1-year OEM factory warranty coverage.
