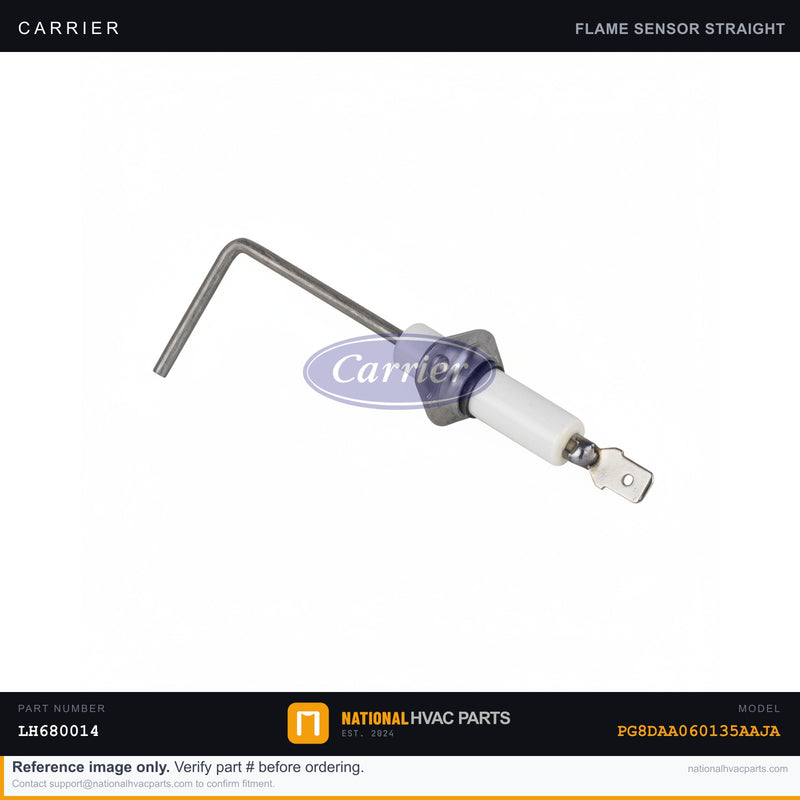

OEM Carrier Flame Sensor Rod for Package Unit PG8DAA060135AAJA

The flame sensor in your Carrier PG8DAA060135AAJA package unit is a single metal rod that sits in the burner flame and confirms ignition by sensing a tiny microamp current passing through the flame to ground. The control board watches this signal continuously. When the rod becomes coated with silica or carbon, or simply wears out, the board can no longer 'see' the flame and shuts the gas valve within seconds as a safety measure. Homeowners notice this as short-cycling: the burners light, run for 2 to 7 seconds, then drop out, and after a few failed tries the furnace locks out and the unit blows cold air or no heat at all. This is a true OEM rod with the correct length, bend, and ceramic insulator so it sits at the exact depth in the flame envelope your burners were engineered for. Position matters — too shallow and the flame-rectification current is too weak to satisfy the board. Why OEM here: aftermarket sensors are often built with thinner Kanthal rod and looser insulators that drift out of position and oxidize faster, giving you a second no-heat call within a season. The OEM rod holds a stronger, more stable microamp reading (typically 1.5–6 µA) for years. Install difficulty: 2 of 5. Tools: 1/4" nut driver and a multimeter set to DC microamps to verify the new reading. SAFETY: turn off the gas at the unit's shutoff valve and kill power at the breaker before removing the burner-compartment panel. Reuse the original wire lead and route it away from the burner. Ships same business day from our stocked warehouse on orders before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PG8DAA060135AAJA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
