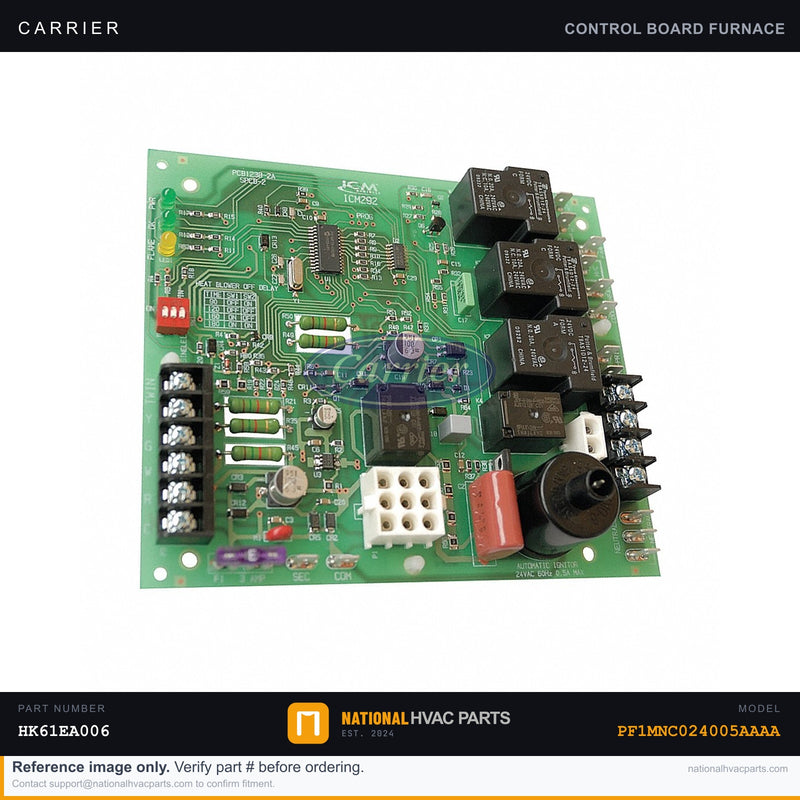

OEM Carrier Furnace Control Board Replacement for PF1MNC024005AAAA

The integrated control board is the brain of your Carrier PF1MNC024005AAAA fan coil/air handler. It sequences the relays that energize the blower motor and electric heat strips, manages blower on/off timing, reads the 24V thermostat call (R, C, G, W, Y), and watches the safety limits. When it fails the symptoms are unmistakable: a blower that won't start, the unit short-cycling on and off, the thermostat showing power but the air handler doing nothing, the blower running nonstop, or a flashing fault-code LED on the board itself. Burned or welded relays and cracked solder joints are the usual culprits and cause random, hard-to-diagnose dropouts. Specs: This OEM board carries the full complement of line-voltage relays needed to switch the blower and auxiliary heat plus the low-voltage 24V terminal block, an onboard diagnostic fault-code LED, and the exact connector pinout and wiring harness keying of the PF1MNC platform. Relay contact ratings and blower timing profiles match the factory specification. Why OEM matters: Control boards are not interchangeable — relay count, contact ratings, timing logic, and connector pinouts differ board to board. A generic board with undersized relays will pit and burn under the inrush of the blower and heat strips, and mismatched timing causes short-cycling that shortens the life of the motor and heaters. OEM guarantees correct logic and a true plug-in fit. Installation difficulty: 4/5. Tools: 1/4" nut driver, Phillips screwdriver, needle-nose pliers, multimeter, and your phone to photograph the wiring before you disconnect anything. #1 safety warning: KILL THE BREAKER to the air handler before opening the panel — this board carries lethal line voltage. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PF1MNC024005AAAA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.

Shipping & Returns

Same-day shipping on orders before 3 PM CST. Standard delivery 2-5 business days, express options available at checkout. 30-day hassle-free returns on uninstalled parts — free return shipping included. 1-year OEM factory warranty coverage.
