OEM Carrier Integrated Furnace Control Board for GB1AAV060125AAJA
Carrier

OEM Carrier Integrated Furnace Control Board for GB1AAV060125AAJA

SKU: CARRIE-GB1AAV060125AAJA-CONTROL_BOARD-CESO110057-02 Brand: Carrier
✓ Guaranteed to fit GB1AAV060125AAJA — or your money back. Terms

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014
SAM.gov Registered
Govt POs Accepted

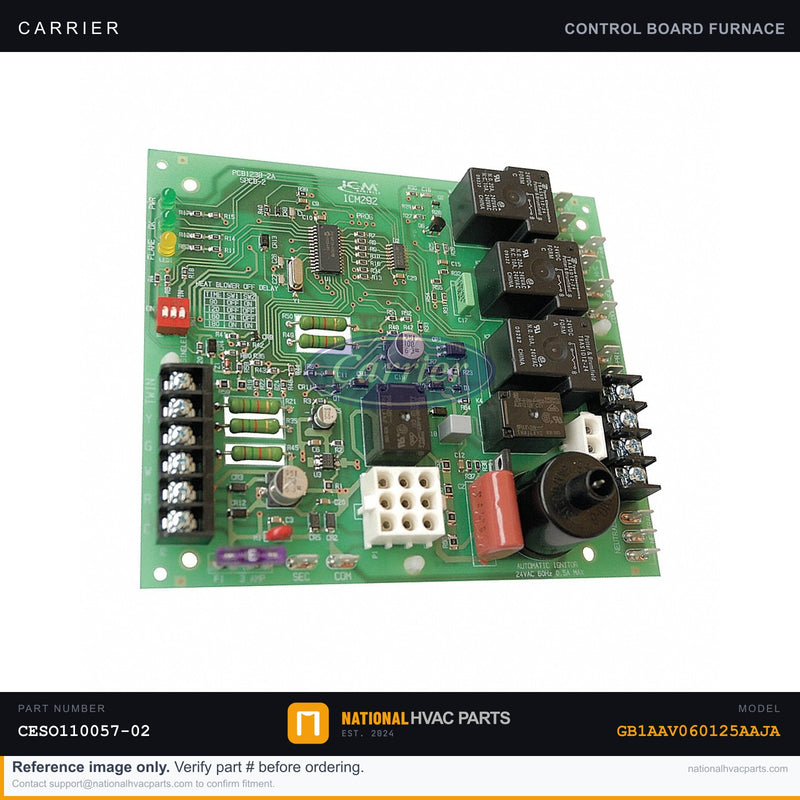

OEM Carrier Integrated Furnace Control Board CESO110057-02 for Model GB1AAV060125AAJA

This is the factory OEM integrated furnace control (IFC) board for the Carrier GB1AAV060125AAJA gas furnace. The control board is the brain of your heating system — it sequences the inducer motor, igniter, gas valve, blower, and all safety circuits in precise timing. When the board fails, symptoms range from complete no-heat lockout and error code flashing to random short-cycling, igniter not energizing, or the blower running continuously even when there is no call for heat. Replacing the board with a factory OEM unit ensures all timing parameters, fault diagnostics, and safety lockout thresholds match the original factory specification exactly.

  • Specs: OEM Part Number CESO110057-02 | Integrated Furnace Control (IFC) Board | 120V input / 24V control circuit | Factory-programmed for Carrier GB1AAV060125AAJA timing and fault logic
  • OEM vs Generic: OEM boards ship pre-programmed with the exact ignition timing, blower delay, and safety lockout sequences required by this model. Aftermarket boards frequently use generic firmware that can cause nuisance lockouts, improper blower delays, or voided equipment warranties.
  • Install Difficulty: 3/5 — Requires turning off power at the disconnect and gas supply before beginning. Tools needed: 1/4" and 5/16" nut drivers, needle-nose pliers, phone or camera to photograph all wiring harness connections prior to removal. Transfer wiring connector by connector to avoid mis-wiring. A multimeter is strongly recommended for verifying 24V control circuit continuity post-install.
  • Warranty: 1-year OEM factory warranty against defects. Orders placed by 3 PM local time ship same business day from our climate-controlled parts warehouse.

Compatibility: This board is factory-matched to the Carrier GB1AAV060125AAJA 60,000 BTU 80% AFUE gas furnace. Always verify OEM part number CESO110057-02 against your existing board's label before ordering. If you are unsure of fitment, our HVAC parts specialists are available to confirm compatibility before you purchase — no guesswork required.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $99
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email info@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Control Board fit my Carrier GB1AAV060125AAJA?
Yes. This is the factory-specified OEM control board for the Carrier GB1AAV060125AAJA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the control board on my Carrier GB1AAV060125AAJA?
Difficulty: Advanced (1–2 hrs)
Step 1: Turn off breaker. Step 2: PHOTOGRAPH all wire connections before touching anything. Step 3: Label each wire with tape. Step 4: Disconnect all wires, remove old board. Step 5: Mount new board, reconnect all wires matching your photo exactly. Step 6: Restore power and test all modes. Exact part number match is critical.
My HVAC system is completely dead. What could be wrong?
Completely dead HVAC (no LED on board) = failed control board or blown fuse. Check board fuse first (3A or 5A, costs $1–$5). If fuse is good and board has power but no LED, board is dead. Always photograph wiring before replacing.
Is this control board compatible with Bryant or Payne too?
Many Carrier parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Carrier control board?
OEM essential. Control boards are model-specific with precise firmware and connector layouts. Aftermarket boards rarely match all functions and can cause intermittent failures or safety issues. Always match the exact OEM part number.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
