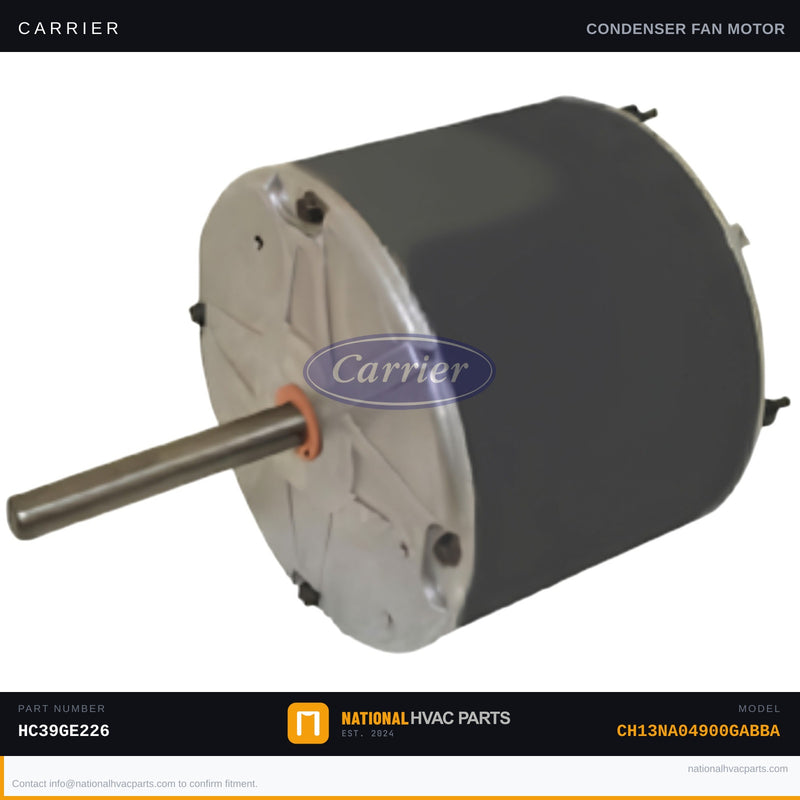

OEM Carrier Condenser Fan Motor for Model CH13NA04900GABBA

This OEM condenser fan motor is the factory-specified replacement for the Carrier CH13NA04900GABBA split-system air conditioner. The condenser fan motor drives the outdoor fan blade, pulling air across the condenser coil to reject heat from the refrigerant. When this motor fails, airflow across the coil stops — leading to high-pressure lockout, compressor overheating, and a complete loss of cooling. Common failure symptoms include a humming outdoor unit with a stationary fan blade, intermittent shutdowns on hot days, or a visibly seized or wobbling fan.

• Specs: Replaces OEM part numbers HC39GE226 and HB39GQ230 | Rated for condenser fan duty | Factory-matched HP, RPM, rotation direction, and 1/2" shaft diameter | 208-230V single-phase operation
• OEM vs Generic: OEM motors are wound and balanced to exact factory tolerances, ensuring correct airflow CFM and amperage draw. Aftermarket motors frequently ship with incorrect rotation or RPM ratings, risking compressor damage and voiding equipment warranties.
• Install difficulty: 3/5 — Disconnect power at the disconnect box before beginning. Tools needed: 1/4" and 5/16" nut drivers, adjustable wrench, needle-nose pliers, multimeter. Photograph all wiring connections and fan blade orientation before removal. Note shaft-up or shaft-down mounting position from your existing unit.
• Warranty: 1-year OEM factory warranty against defects in materials and workmanship. In-stock and ships same business day from our climate-controlled warehouse.

Compatibility: Designed for the Carrier CH13NA04900GABBA condenser unit. Always verify horsepower, voltage, RPM, rotation, and shaft diameter against your unit's data plate and existing motor label before ordering. Our HVAC parts specialists are available to confirm fitment — just reach out before you order and we'll verify compatibility at no charge.
