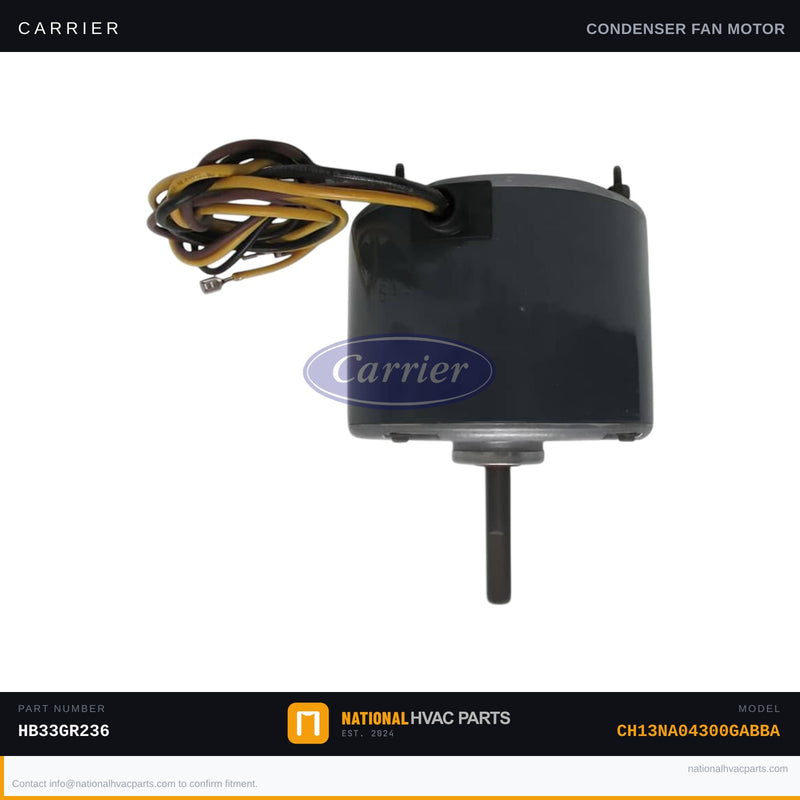

OEM Carrier Condenser Fan Motor HB33GR236 for Model CH13NA04300GABBA

This is the factory OEM condenser fan motor (part number HB33GR236) designed as a direct replacement for the Carrier CH13NA04300GABBA split-system air conditioner. The condenser fan motor drives the outdoor fan blade to pull air across the condenser coil, dissipating heat from the refrigerant and allowing your system to cool effectively. When this motor fails, the condenser coil overheats, triggering high-pressure lockout and leaving your home without cooling — often on the hottest days of the year. Common symptoms include a condenser fan that hums but won't spin, runs intermittently, or doesn't run at all while the compressor is still operating.

• Specs: OEM part number HB33GR236 | Factory-matched HP, RPM, rotation direction, and shaft diameter for Carrier CH13NA04300GABBA | 48-frame condenser fan motor | Thermally protected for safe, reliable operation
• OEM vs Generic: This factory OEM motor is wound and balanced to exact Carrier specifications, ensuring correct airflow across the condenser coil. Aftermarket motors often deviate in RPM and rotation, reducing system efficiency and risking premature compressor failure due to insufficient heat rejection.
• Install difficulty: 3/5 — Disconnect all power before servicing. Tools needed: 1/4" and 5/16" nut drivers, adjustable wrench, multimeter, blade puller (recommended). Note the fan blade pitch and depth before removal, and verify rotation direction (CW or CCW as viewed from shaft end) matches original. Torque mounting bolts evenly to prevent vibration.
• Warranty: 1-year OEM factory warranty against defects. Ships same business day from our climate-controlled warehouse — your repair won't wait.

Compatibility: Engineered specifically for the Carrier CH13NA04300GABBA condenser unit. Always verify HP, RPM, voltage, and rotation direction against your unit's data plate and existing motor nameplate before installation. Our fitment team is available to confirm compatibility before you order — no guesswork required. Order by 3 PM local time and your part ships today.
