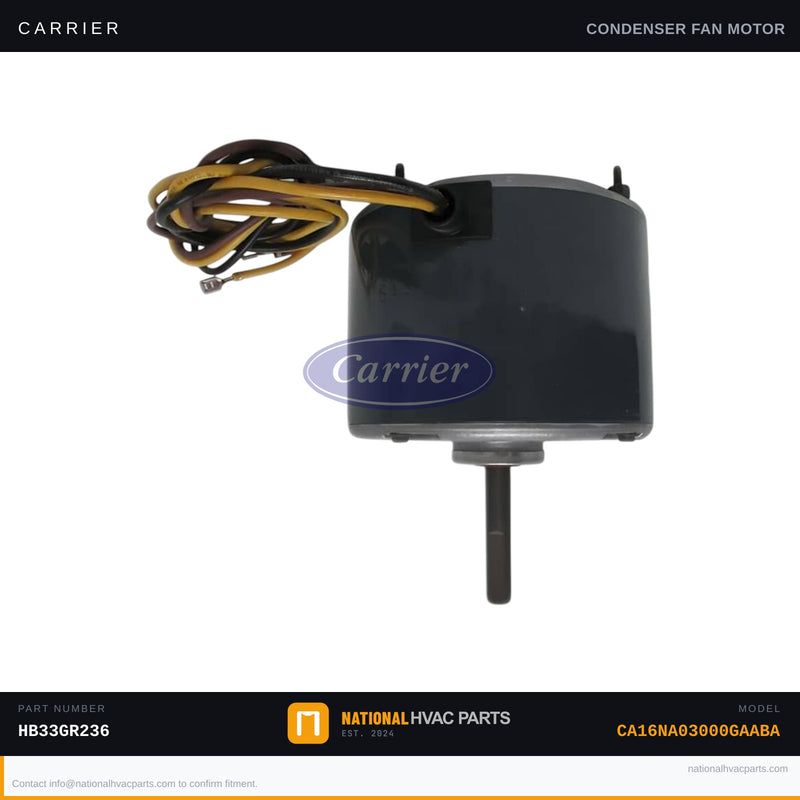

OEM Carrier Condenser Fan Motor HB33GR236 for Model CA16NA03000GAABA

This is the factory-specified OEM condenser fan motor (part number HB33GR236) for the Carrier CA16NA03000GAABA split-system air conditioner. The condenser fan motor drives the outdoor fan blade to pull air across the condenser coil, rejecting heat from the refrigerant. When this motor fails, the condenser coil overheats, triggering high-pressure lockout, compressor shutdown, or complete loss of cooling. Common symptoms include a buzzing outdoor unit with no fan movement, intermittent cooling, or the system shutting off shortly after startup on hot days.

• Specs: Factory-matched HP, RPM, rotation direction, and shaft diameter for the CA16NA03000GAABA | 208-230V single-phase | Thermally protected | OEM ±3% tolerance on all electrical ratings
• OEM vs Generic: OEM motors are wound and balanced to Carrier's exact factory specifications, ensuring proper airflow, correct amp draw, and long service life. Aftermarket motors frequently mismatched in RPM or rotation direction can damage fan blades and void equipment warranties.
• Install difficulty: 3/5 — Disconnect power at the disconnect box and confirm zero voltage before beginning. Tools needed: 1/4" and 5/16" nut drivers, adjustable wrench, multimeter, wire nuts. Photograph all wiring and note fan blade pitch and orientation before removal. Reuse the existing fan blade if undamaged, confirming correct blade-to-motor shaft fit.
• Warranty: 1-year OEM factory warranty against defects. Ships same business day from our warehouse when ordered before 3 PM local time.

Compatibility: Designed as a direct OEM replacement for the Carrier CA16NA03000GAABA 3-ton single-stage R-410A split-system condenser. Always verify horsepower, RPM, rotation, and shaft diameter against your unit's data plate before installing. Our fitment team is available to confirm compatibility before you order — same-day shipping available on all in-stock OEM motors.
