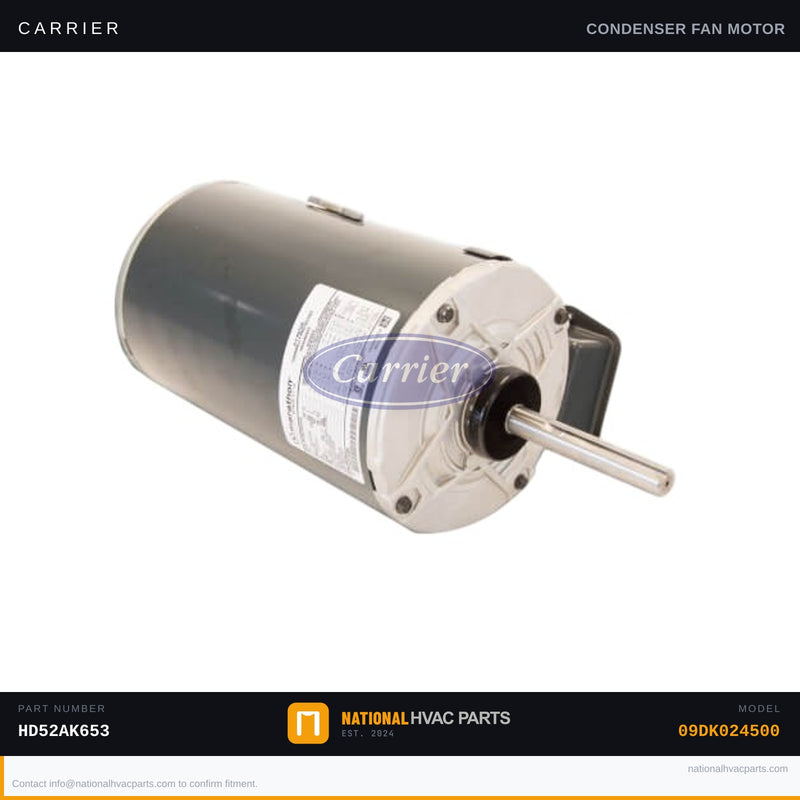

OEM Carrier Condenser Fan Motor for Model 09DK024500

This OEM condenser fan motor is the factory-specified replacement for the Carrier 09DK024500 condensing unit. The condenser fan motor drives the fan blade that exhausts heat from the refrigerant coil. When this motor fails, the condenser loses its ability to reject heat — symptoms include the system running with little or no cooling, the outdoor unit shutting down on high-pressure lockout, or the fan blade sitting completely still while the compressor hums. Replacing with a genuine OEM motor ensures factory-matched RPM, rotation direction, and shaft diameter so your system returns to full rated capacity.

• Specs: OEM-matched HP, RPM, and rotation direction | Factory-spec shaft diameter and mounting configuration | 208–230V single-phase | Replaces part numbers HD52AK653, HD52AK654, HD52AK002, and HC52AE235
• OEM vs Generic: OEM motors are wound and balanced to Carrier's exact factory tolerances, ensuring correct airflow CFM and amperage draw. Generic motors frequently deviate in RPM or rotation, risking coil overheating and compressor damage over time.
• Install difficulty: 3/5 — Disconnect and lock out power before beginning. Tools needed: 1/4" and 5/16" nut drivers, adjustable wrench, multimeter. Carefully note fan blade pitch and depth before removal. Reuse the existing blade only if undamaged; inspect for cracks or stress marks.
• Warranty: 1-year OEM factory warranty. In-stock units ship same business day from our warehouse.

Compatibility: Designed for the Carrier 09DK024500 condensing unit. Always verify horsepower, voltage, RPM, and rotation direction against your unit's data plate before ordering. Cross-references include OEM part numbers HD52AK653, HD52AK654, HD52AK002, and HC52AE235. Our fitment team is available to confirm compatibility before you order — no guesswork required.
