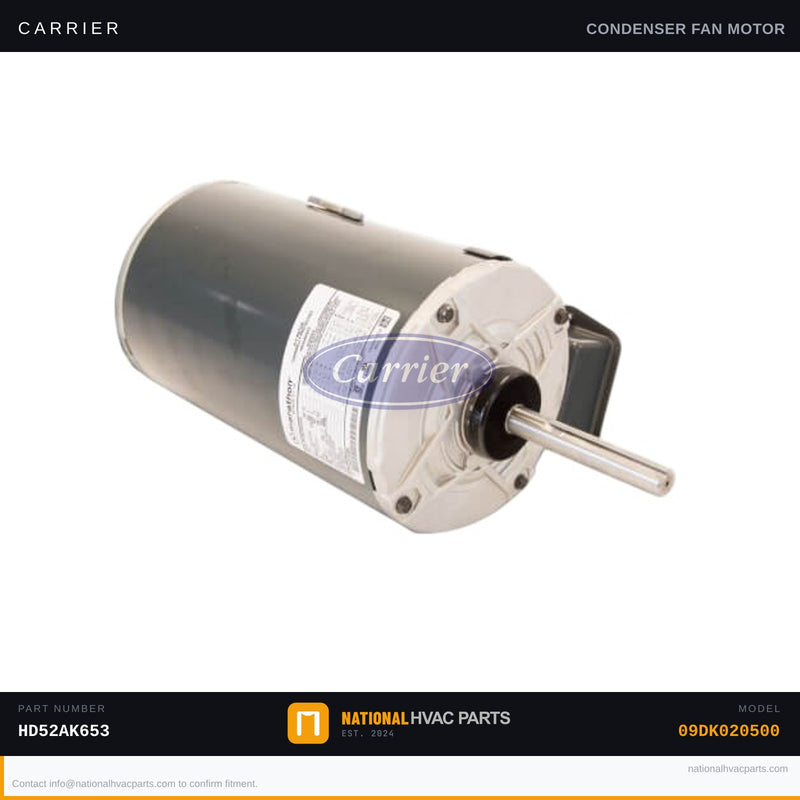

OEM Carrier 3-Phase Condenser Fan Motor 1HP 1140RPM for Model 09DK020500

This OEM Carrier condenser fan motor is the factory-specified replacement for the Carrier 09DK020500 commercial condensing unit. The condenser fan motor drives the propeller blade that pulls ambient air across the refrigerant coil, rejecting heat and maintaining proper subcooling. When this motor fails, the condenser cannot shed heat — leading to high-head pressure trips, refrigerant-side faults, and ultimately a complete system shutdown. Common failure symptoms include the condenser fan blade not spinning, the unit overheating and locking out on high-pressure cutout, or an audible hum with no motor rotation indicating a seized bearing or open winding.

• Specs: 1 HP | 208-230/460V AC | 3-Phase | 1140 RPM | 56Y Frame | 5-5/8" Diameter | 3-3/4" x 5/8" Shaft | Reversible Rotation | 6.6/3.3A FLA | 60 Hz | OEM Part Numbers: HD52AK653, HD52AK654, HD52AK002, HC52AE235
• OEM vs Generic: This is a genuine Carrier factory part — engineered to exact torque, thermal, and vibration tolerances for the 09DK020500 platform. Aftermarket motors frequently deviate in frame dimensions, shaft length, or rotation direction, risking blade imbalance, premature bearing failure, and voided equipment warranty.
• Install difficulty: 3/5 — Requires lockout/tagout of 3-phase power before any work begins. Tools needed: multimeter (verify phase voltage and motor winding continuity), 5/16" and 3/8" nut drivers, adjustable wrench, and a shaft puller for fan blade removal. Verify rotation direction (CW or CCW shaft-end view) before energizing. Torque blade hub set screw to manufacturer spec.
• Warranty: 1-year OEM factory warranty against defects in materials and workmanship. Ships same business day from our warehouse when ordered before 3 PM local time.

Compatibility: Direct OEM replacement for Carrier model 09DK020500 commercial condensing units. Also cross-references Carrier OEM part numbers HD52AK654, HD52AK002, and HC52AE235. Replaces legacy numbers HD52AK651 and HD52VE400. Always confirm voltage, phase, HP, and frame size against your unit's data plate before ordering. Our technical team is available to verify fitment — contact us before you buy.
