OEM Carrier Single Run Capacitor 30 MFD 440V for 09DE164C500
OEM Carrier Single Run Capacitor 30 MFD 440V for 09DE164C500
OEM Carrier Single Run Capacitor 30 MFD 440V for 09DE164C500
OEM Carrier Single Run Capacitor 30 MFD 440V for 09DE164C500
Carrier

OEM Carrier Single Run Capacitor 30 MFD 440V for 09DE164C500

SKU: CARRIE-09DE164C500-CAPACITOR-P291-3004 Brand: Carrier
✓ Guaranteed to fit 09DE164C500 — or your money back. Terms

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014
SAM.gov Registered
Govt POs Accepted

OEM Carrier Single Run Capacitor 30 MFD 440V for Model 09DE164C500

This OEM Carrier Totaline single run capacitor is the factory-specified replacement for the Carrier 09DE164C500. The run capacitor provides a continuous phase-shifted electrical charge to keep the condenser fan motor or compressor motor spinning efficiently once started. When this capacitor degrades or fails, symptoms include a humming motor that won't turn over, intermittent shutdowns, reduced airflow, or a system that trips on high-pressure lockout due to overheating — all because the motor can no longer sustain proper torque. Replacing a weak capacitor is one of the most cost-effective HVAC repairs available.

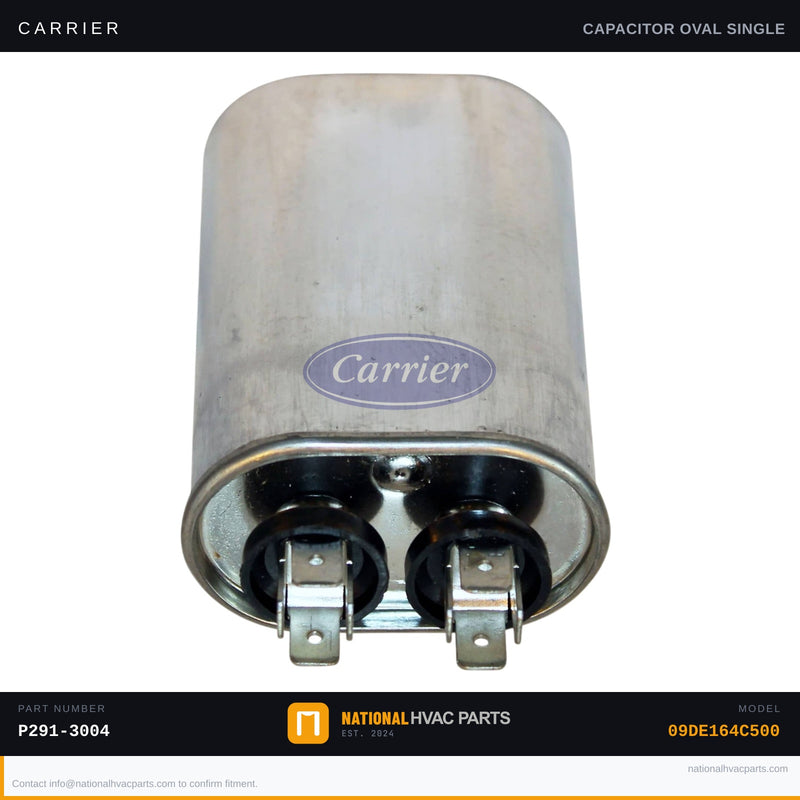

  • Specs: 30 MFD (microfarad) | 440V rated | Oval case | Carrier Totaline / P291-series factory spec | ±5% capacitance tolerance
  • OEM vs Generic: This OEM Carrier Totaline unit is manufactured to exact factory tolerances, ensuring correct phase shift and motor protection. Generic replacements often deviate ±10% MFD, accelerating motor winding wear and shortening equipment life.
  • Install difficulty: 2/5 — Always discharge the capacitor before touching terminals (use a 20kΩ resistor or insulated screwdriver). Tools needed: 1/4" nut driver, needle-nose pliers, multimeter. Photograph all wiring connections before disconnecting the old unit.
  • Warranty: 1-year OEM factory warranty included. Ships same business day from our warehouse.

Compatibility: Engineered for Carrier model 09DE164C500. Always verify the MFD rating and voltage on your unit's data plate before ordering to confirm fitment. Need help? Our HVAC parts specialists verify compatibility before you buy — order with confidence and get it shipped today.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $99
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email info@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Capacitor fit my Carrier 09DE164C500?
Yes. This is the factory-specified OEM capacitor for the Carrier 09DE164C500. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the capacitor on my Carrier 09DE164C500?
Difficulty: Easy (20–30 min)
Step 1: Turn off power at breaker. Step 2: Open condensing unit panel. Step 3: Photograph the old capacitor wiring (Common/Herm/Fan). Step 4: Discharge old capacitor with insulated screwdriver. Step 5: Disconnect and remove old capacitor. Step 6: Mount new capacitor, reconnect wires to matching terminals. Step 7: Close panel, restore power, test. Tools: screwdriver, needle-nose pliers.
My AC hums but won’t start. What part do I need?
An AC that hums but won’t start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost to start the compressor. When it fails, you hear humming but the motor can’t overcome inertia. Other symptoms: fan spinning slowly, AC cycling on/off rapidly, or a visibly swollen capacitor. Fix: replace capacitor ($15–$80 DIY, 30 min).
Is this capacitor compatible with Bryant or Payne too?
Many Carrier parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Carrier capacitor?
OEM strongly recommended. OEM capacitors have ±6% MFD tolerance vs aftermarket ±10%. The looser tolerance causes motor winding stress, higher temps, and shorter compressor life. Price difference is only $10–$20 — OEM is the clear value choice.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
