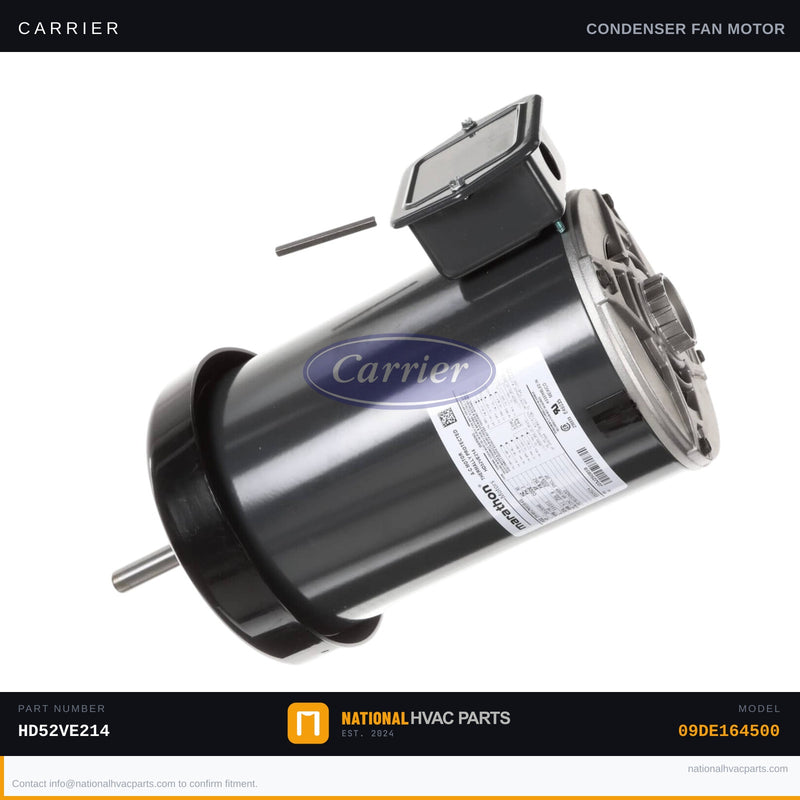

OEM Carrier Condenser Fan Motor 1HP 200-230/460V for 09DE164500
OEM Carrier Condenser Fan Motor 1HP 200-230/460V for 09DE164500
OEM Carrier Condenser Fan Motor 1HP 200-230/460V for 09DE164500
Carrier

OEM Carrier Condenser Fan Motor 1HP 200-230/460V for 09DE164500

SKU: CARRIE-09DE164500-FAN_MOTOR-HD52VE214 Brand: Carrier
✓ Guaranteed to fit 09DE164500 — or your money back. Terms

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014
SAM.gov Registered
Govt POs Accepted

OEM Carrier Condenser Fan Motor 1 HP 200-230/460V for Model 09DE164500

This OEM condenser fan motor is the factory-specified replacement for the Carrier 09DE164500 commercial condensing unit. The condenser fan motor drives the outdoor fan blade to pull air across the condenser coil and reject heat. When this motor fails, the system loses the ability to dissipate heat, leading to high-pressure lockout, compressor overheating, nuisance tripping, or a complete system shutdown. Common failure symptoms include a humming motor that won't spin, a seized or burning-smell motor, or intermittent operation on hot days.

  • Specs: 1 HP | 200-230/460V 3-Phase | 1140 RPM (HD52VE214) / 1075 RPM CCW (HC52AE235) | Frame 56 | Ball Bearing | 6.0/3.0 FLA | 5/8" × 3.6" Shaft | 60 Hz | Factory Authorized Parts™
  • OEM vs Generic: These Factory Authorized Parts are engineered to meet exact Carrier Corporation tolerances for torque, thermal protection, and bearing load. Generic aftermarket motors frequently deviate on shaft length, rotation direction, or FLA rating — all of which can cause premature failure or voided equipment warranties. Always replace with the correct OEM part number for this application.
  • Install Difficulty: 4/5 — This is a 3-phase commercial motor replacement requiring licensed electrical competency. Always disconnect and lockout/tagout all power before servicing. Tools needed: multimeter, screwdrivers, wire nuts or terminal connectors, conduit fittings as applicable, torque wrench for fan blade hub set screw. Verify rotation direction and wiring configuration before energizing. Strongly recommended: replace the run capacitor (HC52AE235 application uses 50 MFD 370V) at the same time to prevent premature motor failure.
  • Warranty: 1-year OEM factory warranty. Ships same business day from our warehouse. Free freight on qualifying orders.

Compatibility: Fits Carrier model 09DE164500 commercial condensing unit. OEM part numbers HD52VE214 and HC52AE235 are both covered by this listing — confirm your unit's data plate voltage (200-230/460V or 200-230V single-phase) and RPM before ordering. Cross-references include HD52VL851, HD52VE200, HD52VE204, HD52VE212, HD52VF204, HD52VZ204 (HD52VE214 line) and HC52AE232, HC52TE230 (HC52AE235 line). Questions about fitment? Our HVAC parts specialists verify compatibility before you order — contact us today and ship the same day.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $99
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email info@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Carrier 09DE164500?
Yes. This is the factory-specified OEM fan motor for the Carrier 09DE164500. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Carrier 09DE164500?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Carrier parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Carrier fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
