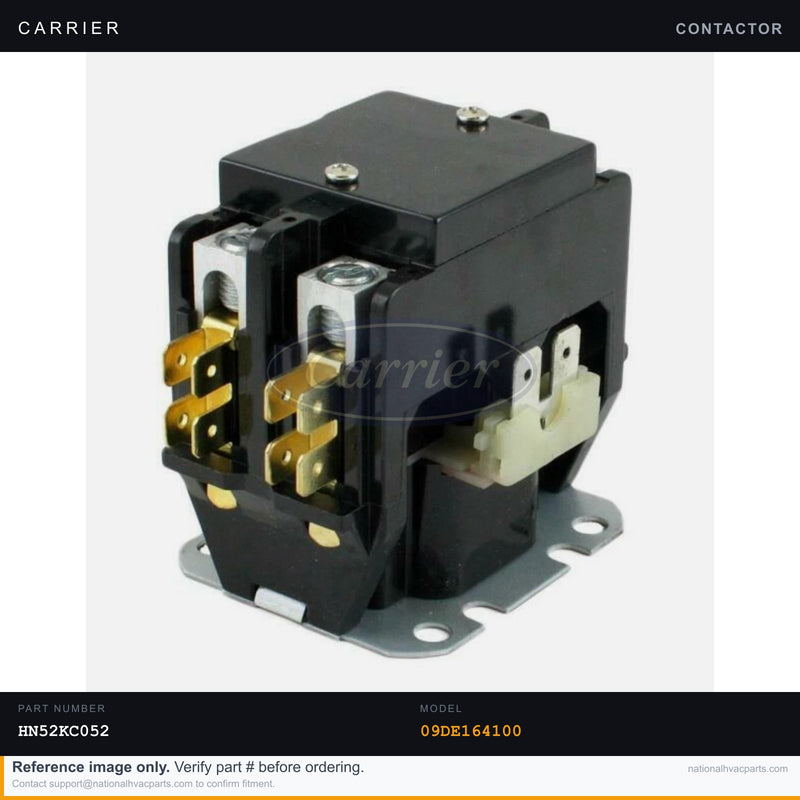

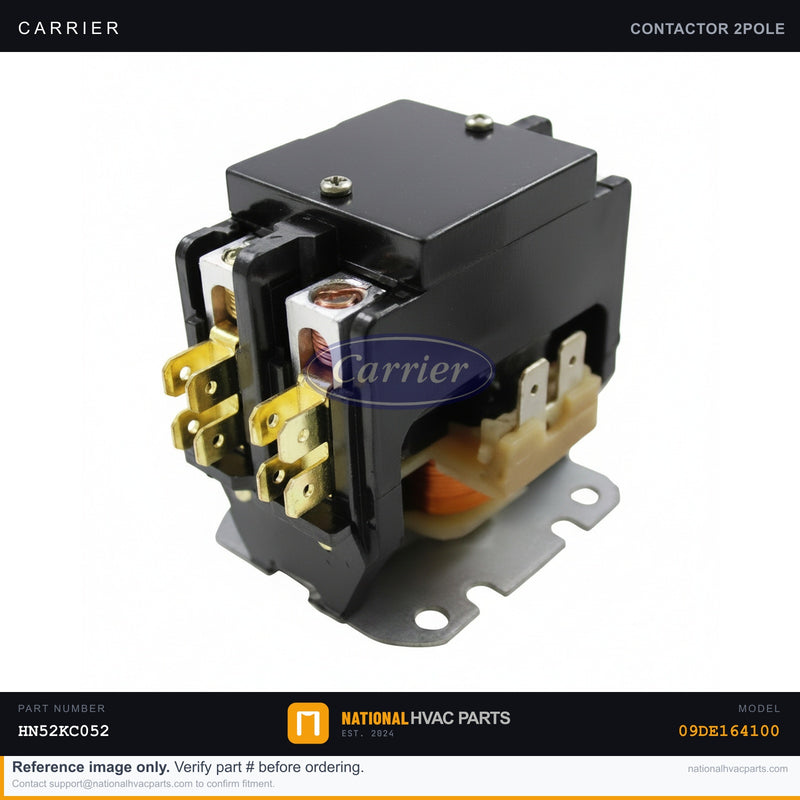

OEM Carrier Contactor 2-Pole 30A 120V Coil for 09DE164100
Carrier

OEM Carrier Contactor 2-Pole 30A 120V Coil for 09DE164100

SKU: CARRIE-09DE164100-CONTACTOR-HN52KC052 Brand: Carrier
✓ Guaranteed to fit 09DE164100 — or your money back. Terms

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014
SAM.gov Registered
Govt POs Accepted

OEM Carrier 2-Pole 30 Amp 120V Contactor HN52KC052 for Model 09DE164100

This genuine OEM contactor is the factory-specified replacement part HN52KC052 for the Carrier 09DE164100. The contactor acts as a high-voltage relay, regulating electrical flow to critical components — including the compressor and condenser fan motor — enabling them to start and stop on command from the control circuit. When a contactor fails, the most common symptoms include the system refusing to turn on, chattering or loud humming from the condenser cabinet, welded contacts that keep the unit running continuously, or the compressor and fan motor failing to energize at all.

  • Specs: 2-Pole | 30 Amp | 120V Coil | 50/60 Hz | Factory OEM part number HN52KC052 (cross-ref: 3100-20T628)
  • OEM vs Generic: This is a genuine Carrier Factory Authorized Part built to exact manufacturer tolerances for coil pull-in voltage, contact resistance, and arc interruption rating. Generic contactors often use lower-grade contact materials that pit and weld faster under load, shortening equipment life.
  • Install Difficulty: 3/5 — Requires disconnecting main power at the disconnect box before servicing. Tools needed: flathead and Phillips screwdrivers, needle-nose pliers, multimeter, and voltage tester. Always photograph existing wiring before removing the old contactor. Verify coil voltage on your unit's data plate matches 120V before ordering.
  • Warranty: 1-year OEM factory warranty against defects. Ships same business day from our warehouse — order before cutoff and get back up and running fast.

Compatibility: Designed as the direct OEM replacement contactor for Carrier model 09DE164100. Verify your unit's data plate shows a 120V control circuit and 30A contactor rating before ordering. Cross-reference part number 3100-20T628 also applies. Not sure it fits? Our HVAC parts specialists confirm fitment before you buy — contact us before placing your order.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $99
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email info@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Contactor fit my Carrier 09DE164100?
Yes. This is the factory-specified OEM contactor for the Carrier 09DE164100. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the contactor on my Carrier 09DE164100?
Difficulty: Medium (30–45 min)
Step 1: Turn off breaker. Step 2: Open condensing unit panel. Step 3: Photograph ALL wiring on the contactor. Step 4: Label each wire with tape. Step 5: Disconnect wires and remove old contactor. Step 6: Mount new contactor, reconnect wires matching your photo. Step 7: Restore power and test.
My AC clicks but the compressor won’t turn on. What’s wrong?
Clicking from the outdoor unit without the compressor starting = worn contactor. The contactor sends power to the compressor. When its contacts are pitted, it clicks but can’t make solid contact. Look for: visible pitting/burn marks on the contactor face, intermittent operation, or buzzing.
Is this contactor compatible with Bryant or Payne too?
Many Carrier parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Carrier contactor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
