What HP motor do I need for my Carrier unit?

The correct replacement for Carrier model 09DE098C900 is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your Carrier equipment which lists the model number 09DE098C900.

My AC fan is not spinning. What part do I need?

A fan that does not spin, spins slowly, or makes grinding or squealing noises needs a new motor. Grinding means the bearings have failed. Squealing means the bearings are dry. No spin with a humming sound means the capacitor may be the issue. Check the motor capacitor before replacing the entire motor.

Is this fan motor compatible with Bryant or Payne systems too?

Many Carrier parts are cross-compatible with Bryant and Payne systems since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across multiple brand labels with different model numbers. To verify cross-compatibility, check your Bryant or Payne equipment service manual for cross-compatible part numbers, or contact info@nationalhvacparts.com with your model number for confirmation.

OEM Carrier Condenser Fan Motor 1 HP 1140 RPM 3PH for 09DE098C900

Carrier

OEM Carrier Condenser Fan Motor 1 HP 1140 RPM 3PH for 09DE098C900

Name: OEM Carrier Condenser Fan Motor 1 HP 1140 RPM 3PH for 09DE098C900
Brand: Carrier
SKU: CARRIE-09DE098C900-FAN_MOTOR-HD52AK653
Price: 1850.00 USD
Availability: InStock

SKU: CARRIE-09DE098C900-FAN_MOTOR-HD52AK653 Brand: Carrier

✓ Guaranteed to fit 09DE098C900 — or your money back. Terms

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

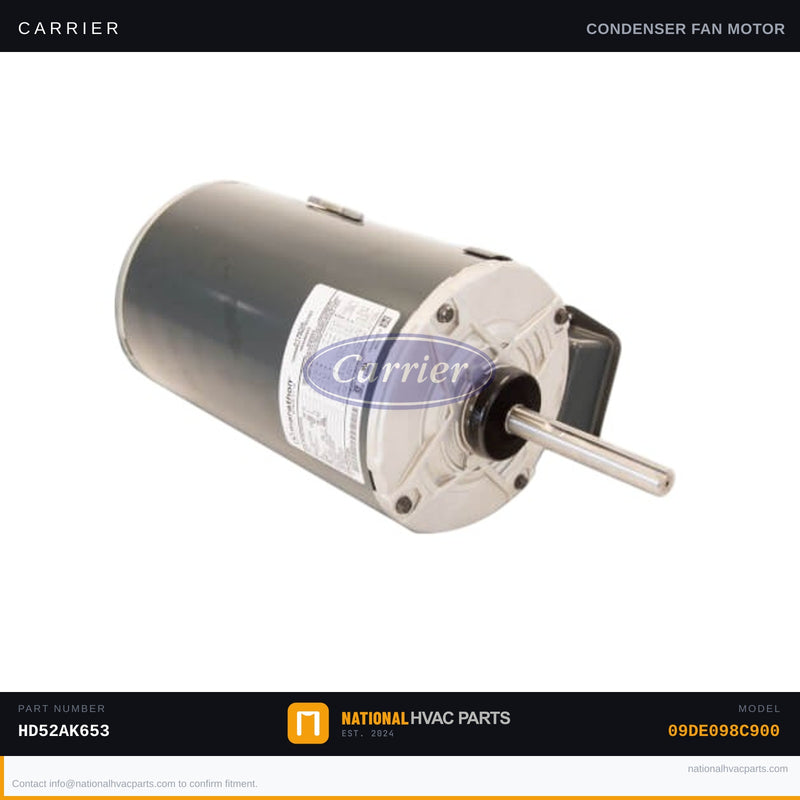

OEM Carrier Condenser Fan Motor 1 HP 1140 RPM 3-Phase for Model 09DE098C900

This genuine OEM Carrier condenser fan motor (part number HD52AK653) is the factory-specified replacement for the Carrier 09DE098C900 commercial condensing unit. The condenser fan motor drives the fan blade that pulls air across the condenser coil to reject heat from the refrigerant. When this motor fails, the condenser coil overheats, triggering high-pressure lockout, reduced cooling capacity, or a complete no-cool condition. Common failure signs include a seized or slow-spinning fan, intermittent tripping on the high-pressure switch, or a motor that hums but will not turn.

Specs: 1 HP | 208-230/460V | 3-Phase | 1140 RPM | 6.6/3.3A FLA | 56Y Frame | 5-5/8" Diameter | 3-3/4" × 5/8" Shaft | Reversible rotation | 60 Hz
OEM vs Generic: This is a genuine Carrier OEM motor wound and balanced to factory tolerances. Aftermarket motors may differ in shaft length, rotation direction, or thermal overload rating — mismatches can cause premature bearing failure or void equipment warranty.
Install difficulty: 3/5 — Requires lockout/tagout and working with 3-phase high-voltage wiring. Tools needed: multimeter, insulated screwdrivers, nut driver set, wire stripper, and torque wrench for blade set-screw. Always verify rotation direction and blade pitch before energizing. Recommend professional installation for 3-phase equipment.
Warranty: 1-year OEM factory warranty. Ships same business day from our warehouse in original Carrier packaging.

Compatibility: Direct OEM replacement for Carrier model 09DE098C900 commercial condensing and chiller applications. Also replaces superseded part numbers HD52AK651, HD52VE400, and Marathon 5K49ZN6391S. Verify voltage configuration (208-230V vs 460V wiring) on your unit's data plate before installation. Need fitment confirmation? Our HVAC parts specialists are standing by — order today and we'll ship it out the same business day.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $99
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

OEM Carrier Condenser Fan Motor ...

$1,850.00

Frequently Asked Questions

Does this Fan Motor fit my Carrier 09DE098C900?

Yes. This is the factory-specified OEM fan motor for the Carrier 09DE098C900. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the fan motor on my Carrier 09DE098C900?

Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.

My AC fan isn’t spinning. What part do I need?

Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.

Is this fan motor compatible with Bryant or Payne too?

Many Carrier parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my Carrier fan motor?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
