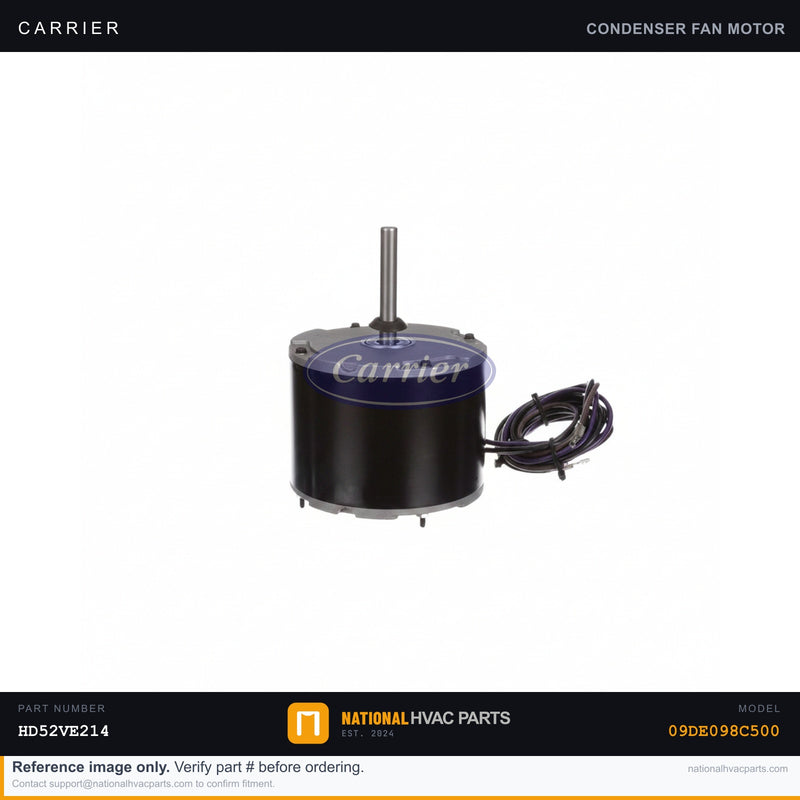

OEM Carrier Condenser Fan Motor 1 HP 200-230/460V for Model 09DE098C500

This is the OEM factory-authorized replacement condenser fan motor for the Carrier 09DE098C500 commercial condensing unit. Part numbers HD52VE214 (3-phase, 1140 RPM) and HC52AE235 (1-phase, 1075 RPM) are both covered in this listing — confirm your unit's electrical configuration before ordering. The condenser fan motor drives the outdoor fan blade, pulling ambient air across the condenser coil to reject heat from the refrigerant. When this motor fails, the condenser loses airflow, causing refrigerant pressures to spike, triggering high-pressure lockouts, and ultimately shutting the system down to prevent compressor damage. Common failure symptoms include: the outdoor fan not spinning while the compressor runs, the unit tripping on high-head pressure, or the motor running hot and humming without turning.

• Specs (HD52VE214): 1 HP | 200-230/460V | 3-Phase | 6.0/3.0 RLA | 1140 RPM | 56Z Frame | Ball Bearing | Factory Authorized Parts™
• Specs (HC52AE235): 1 HP | 200-230 VAC | 1-Phase | 6.2 FLA | 1075 RPM | 56 FR Frame | CCW Rotation | GE/Genteq manufactured
• OEM vs Generic: Factory Authorized Parts are engineered to exact Carrier specifications for voltage tolerance, bearing load, and thermal protection thresholds. Generic motors may deviate in RPM, rotation direction, or shaft diameter — any mismatch can damage the fan blade assembly or void equipment warranty.
• Install Difficulty: 3/5 — Requires disconnecting high-voltage 3-phase or single-phase wiring at the contactor. Always lock out/tag out power before starting. Tools needed: multimeter, nut driver set, wire stripper, torque wrench. Always photograph existing wiring before removal. Verify rotation direction and shaft length before final installation. Recommend replacing the run capacitor simultaneously on single-phase applications.
• Warranty: 1-year OEM factory warranty. In-stock units ship same business day from our warehouse.

Compatibility: Designed as the factory drop-in replacement for Carrier model 09DE098C500. Also replaces legacy part numbers HD52VE204, HD52VE212, HD52VF204, HD52VZ204 (HD52VE214 line) and HC52AE232, HC52TE230 (HC52AE235 line). Verify your unit's voltage configuration (3-phase 460V vs. single-phase 230V) and motor nameplate specs before ordering. Our team is available to verify fitment — contact us before you buy.
