OEM Carrier Contactor 2-Pole 30A 120V Coil for 09DE098500
Carrier

OEM Carrier Contactor 2-Pole 30A 120V Coil for 09DE098500

SKU: CARRIE-09DE098500-CONTACTOR-HN52KC052 Brand: Carrier
✓ Guaranteed to fit 09DE098500 — or your money back. Terms

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014
SAM.gov Registered
Govt POs Accepted

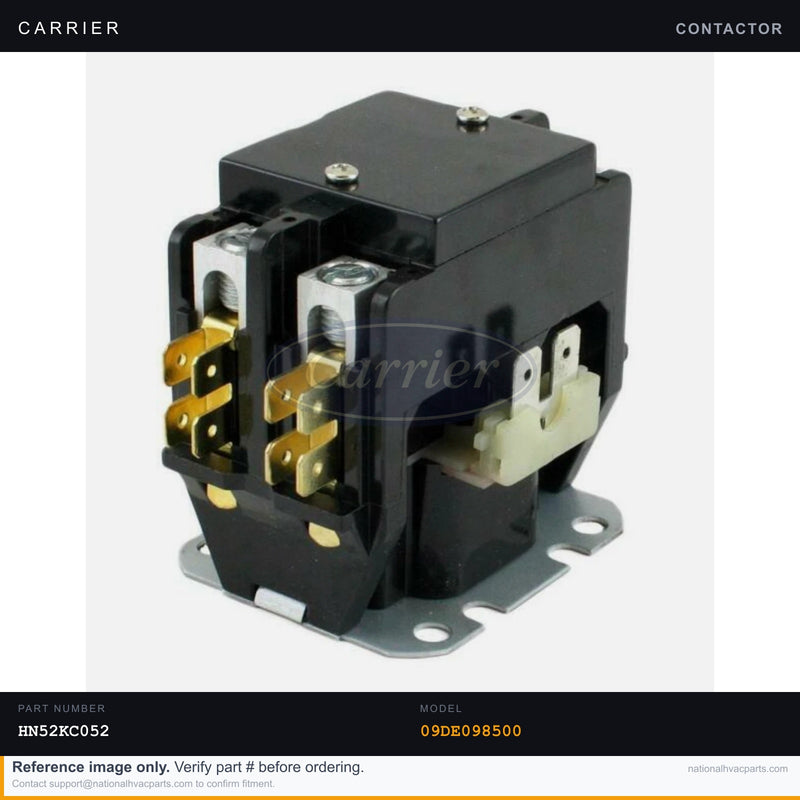

OEM Carrier 2-Pole 30 Amp 120V Contactor (HN52KC052) for Model 09DE098500

This genuine OEM contactor is the factory-specified replacement for the Carrier 09DE098500 HVAC unit. The contactor acts as a high-voltage relay — when the control board signals a call for cooling, its 120V coil energizes and closes the contacts, allowing line voltage to flow to the compressor and condenser fan motor. When it fails, symptoms include the system failing to turn on, audible chattering or humming at the unit, pitted or welded contacts, or the AC running continuously and refusing to shut off.

  • Specs: 2-Pole | 30 Amp | 120V Coil | 50/60Hz | OEM Part# HN52KC052 (also cross-references as 3100-20T628) | Factory tolerance-matched contacts
  • OEM vs Generic: This is a genuine Carrier Factory Authorized Part — not an aftermarket substitute. OEM contacts are precision-stamped to factory amperage ratings, ensuring reliable switching life and protecting downstream components like the compressor from voltage irregularities that generic units can introduce.
  • Install difficulty: 2/5 — Always shut off power at the disconnect and breaker before beginning. Tools needed: flathead and Phillips screwdriver, needle-nose pliers, multimeter. Photograph all wire terminations before removal. Note coil wire polarity and load terminal positions during reinstallation.
  • Warranty: 1-year OEM factory warranty. In-stock and ships same business day from our warehouse.

Compatibility: Designed as the direct OEM replacement for the Carrier model 09DE098500. Also fits select Carrier, Bryant, and Payne equipment sharing the HN52KC052 specification — verify coil voltage (120V) and amperage (30A, 2-pole) against your unit's wiring diagram before ordering. Have questions about fitment? Our team verifies compatibility before you buy — order with confidence and get this part shipped today.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $99
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email info@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Contactor fit my Carrier 09DE098500?
Yes. This is the factory-specified OEM contactor for the Carrier 09DE098500. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the contactor on my Carrier 09DE098500?
Difficulty: Medium (30–45 min)
Step 1: Turn off breaker. Step 2: Open condensing unit panel. Step 3: Photograph ALL wiring on the contactor. Step 4: Label each wire with tape. Step 5: Disconnect wires and remove old contactor. Step 6: Mount new contactor, reconnect wires matching your photo. Step 7: Restore power and test.
My AC clicks but the compressor won’t turn on. What’s wrong?
Clicking from the outdoor unit without the compressor starting = worn contactor. The contactor sends power to the compressor. When its contacts are pitted, it clicks but can’t make solid contact. Look for: visible pitting/burn marks on the contactor face, intermittent operation, or buzzing.
Is this contactor compatible with Bryant or Payne too?
Many Carrier parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Carrier contactor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
