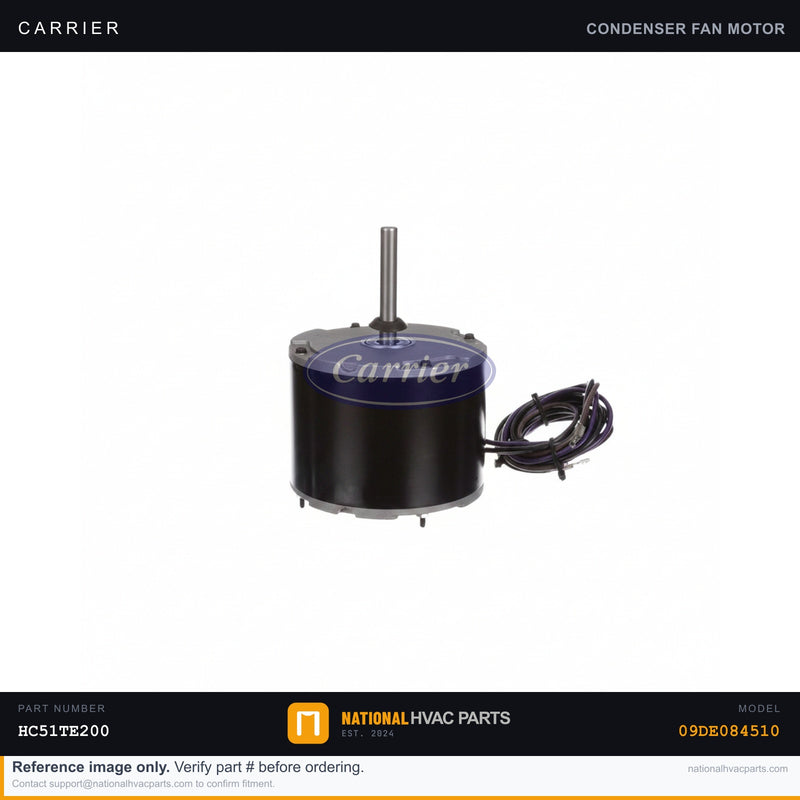

OEM Carrier Condenser Fan Motor 1 HP 1075 RPM for Model 09DE084510

This OEM condenser fan motor is the factory-specified replacement for the Carrier 09DE084510 commercial condenser unit, supplied under part numbers HC51TE200 and HC52AE235. The condenser fan motor drives the outdoor fan blade, pulling ambient air across the condenser coil to reject heat and maintain system efficiency. When this motor fails, the condenser coil overheats rapidly, triggering high-pressure lockout, compressor damage, or complete system shutdown. Common failure symptoms include the fan blade not spinning despite the compressor running, a seized or humming motor, tripped breakers from motor overload, or visible burn marks on the motor housing.

• Specs: 1 HP | 200–230 VAC | 6.2 FLA | 1075 RPM | CCW Rotation | 56 Frame | 5/8" shaft diameter | PSC motor type | Compatible with Motormaster® variable-speed controller (HC52AE235)
• OEM vs Generic: Factory Authorized Parts are engineered to exact Carrier® Corporation specifications, preserving your system's efficiency rating, UL listing, and Energy Star certification. Generic aftermarket motors frequently deviate in rotation direction, shaft length, or FLA rating — risking premature failure and voiding equipment warranties.
• Install difficulty: 3/5 — Requires disconnecting high-voltage wiring and safely supporting the fan deck. Tools needed: multimeter, 5/16" and 3/8" nut drivers, wire stripper, torque wrench, capacitor discharge tool. Always discharge the run capacitor before touching motor terminals. Note fan blade pitch and rotation direction before removal. Recommend replacing the run capacitor (50 µF / 370V) simultaneously.
• Warranty: 1-year OEM factory warranty. In-stock units ship same business day from our warehouse. Cross-references: HC52AE232, HC52TE230, GE/Genteq 5KCP49ZN9623BS.

Compatibility: Engineered for Carrier model 09DE084510 commercial condensing equipment. Verify voltage (200–230V), HP (1), RPM (1075), rotation (CCW), and frame (56) against your unit's motor nameplate before ordering. If your unit uses a Motormaster® low-ambient controller, specify HC52AE235 at checkout. Not sure which variant you need? Our parts specialists verify fitment before you order — contact us today and get same-day shipping on in-stock units.
