OEM Carrier Contactor 2-Pole 30A 120V Coil for 09DE054C100
Carrier

OEM Carrier Contactor 2-Pole 30A 120V Coil for 09DE054C100

SKU: CARRIE-09DE054C100-CONTACTOR-HN52KC052 Brand: Carrier
✓ Guaranteed to fit 09DE054C100 — or your money back. Terms

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014
SAM.gov Registered
Govt POs Accepted

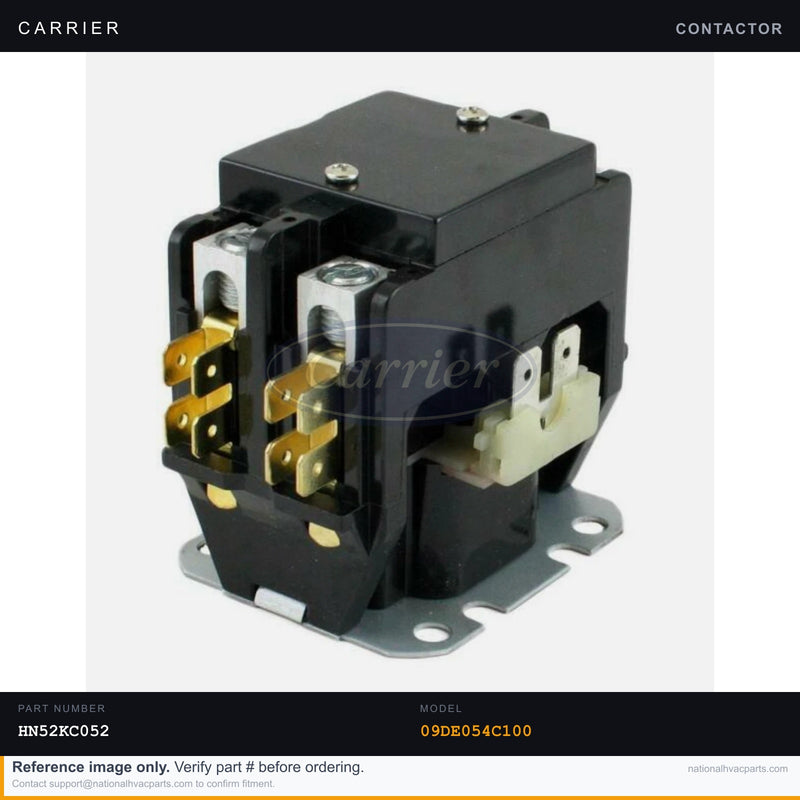

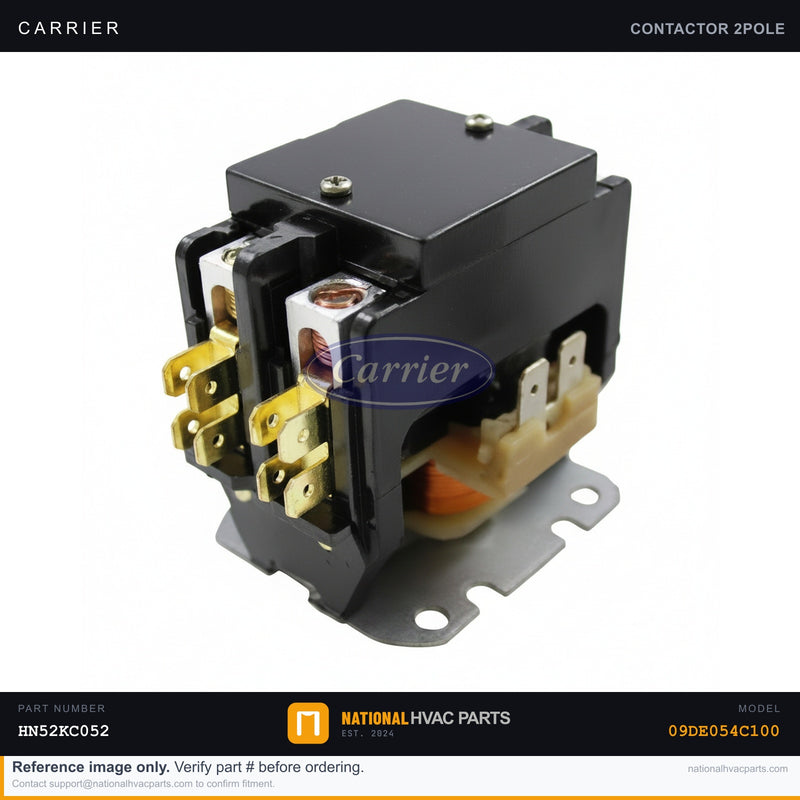

OEM Carrier 2-Pole 30 Amp 120V Contactor HN52KC052 for Model 09DE054C100

This genuine OEM contactor is the factory-specified replacement for the Carrier 09DE054C100. The contactor acts as the high-voltage switch that connects and disconnects power to the compressor and condenser fan motor each time your system cycles. When it fails, you may notice the unit chattering or humming but not starting, failing to turn off entirely, or not responding to thermostat calls at all — all classic signs of a worn or pitted contactor that needs immediate replacement.

  • Specs: 2-Pole | 30 Amp | 120V Coil | 50/60Hz | OEM Part # HN52KC052 (alt: 3100-20T628) | Factory-matched contact rating and coil pull-in voltage
  • OEM vs Generic: Genuine OEM contactors are built to Carrier's exact coil pull-in voltage and contact gap specifications, preventing nuisance trips, pitting, and premature compressor wear that off-brand contactors can cause.
  • Install difficulty: 2/5 — Shut off all power at the disconnect and breaker before starting. Tools needed: flathead and Phillips screwdrivers, needle-nose pliers, multimeter. Photograph all wiring connections before removal. Swap wires one at a time to avoid miswiring.
  • Warranty: 1-year OEM factory warranty against defects. In stock and ships same business day from our warehouse.

Compatibility: Designed for the Carrier 09DE054C100 and other Carrier, Bryant, and Payne equipment specifying a 2-pole, 30-amp, 120V coil contactor. Always verify your unit's data plate and wiring diagram before ordering. Our parts specialists are available to confirm fitment — just reach out before you buy.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $99
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email info@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Contactor fit my Carrier 09DE054C100?
Yes. This is the factory-specified OEM contactor for the Carrier 09DE054C100. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the contactor on my Carrier 09DE054C100?
Difficulty: Medium (30–45 min)
Step 1: Turn off breaker. Step 2: Open condensing unit panel. Step 3: Photograph ALL wiring on the contactor. Step 4: Label each wire with tape. Step 5: Disconnect wires and remove old contactor. Step 6: Mount new contactor, reconnect wires matching your photo. Step 7: Restore power and test.
My AC clicks but the compressor won’t turn on. What’s wrong?
Clicking from the outdoor unit without the compressor starting = worn contactor. The contactor sends power to the compressor. When its contacts are pitted, it clicks but can’t make solid contact. Look for: visible pitting/burn marks on the contactor face, intermittent operation, or buzzing.
Is this contactor compatible with Bryant or Payne too?
Many Carrier parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Carrier contactor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
