Motors & Blowers

2414 parts in stock Same-day shipping 30-day returns

Find the exact motor for your unit

Select your brand and enter the model number from your equipment data plate.

1 Select your brand

2 Enter your model number

Shop by Specs

Browse the products below or use the model number lookup above.

Motor Type

Horsepower

How to Choose the Right HVAC Motor

HVAC systems rely on electric motors to move air through ductwork and across condenser coils. Blower motors inside the furnace or air handler push conditioned air through the supply ducts, while condenser fan motors in the outdoor unit pull air across the condenser coil to reject heat. When a motor fails, the system cannot heat or cool effectively, making motors one of the most critical HVAC components to diagnose and replace quickly.

Blower Motors vs Condenser Fan Motors

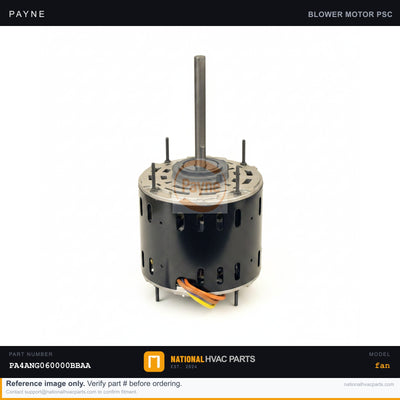

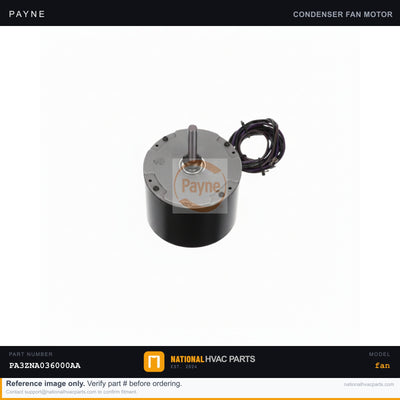

Blower motors are located inside the furnace or air handler and drive the blower wheel that circulates air through ductwork. They run at higher speeds and are typically 1/4 HP to 1 HP. Condenser fan motors are mounted in the outdoor unit and spin the fan blade that pulls air across the condenser coil. They typically run at lower speeds and range from 1/6 HP to 1/2 HP. Always replace with the same motor type for your application.

Horsepower and Speed Ratings

Motor horsepower must match or exceed the original specification. Common blower motor ratings are 1/4 HP for small systems, 1/3 HP for standard residential, 1/2 HP for larger homes, and 3/4 to 1 HP for commercial units. Speed is measured in RPM, with most residential motors running at 1075 RPM. Multi-speed motors offer flexibility for different airflow settings controlled by the furnace board.

PSC vs ECM Motors

PSC (Permanent Split Capacitor) motors are the traditional type found in most residential systems. They use a run capacitor and operate at fixed speeds. ECM (Electronically Commutated Motor) motors are variable-speed, more energy efficient, and quieter. ECM motors cost more but can reduce electricity consumption by 50-70% compared to PSC motors. When replacing, match the motor type unless upgrading from PSC to ECM for efficiency gains.

OEM vs Universal Motors

OEM motors are the exact replacement specified by the equipment manufacturer with matching mounting brackets and wiring. Universal motors match the horsepower, speed, rotation, and shaft dimensions but use a standard mounting configuration. Universal motors from National HVAC Parts include multi-mount brackets and are typically 20-40% less expensive than OEM replacements.

Signs Your Motor Needs Replacement

Common symptoms include the blower not running or running intermittently, unusual grinding, squealing, or humming noises, the motor running hot to the touch, tripped circuit breakers or blown fuses, reduced airflow from supply vents, and the motor starting slowly or requiring a manual spin to start. A motor that requires a new capacitor more than once likely has worn bearings and should be replaced.

Finding Your Replacement

Note the horsepower, RPM, voltage, rotation direction, and shaft dimensions from your existing motor nameplate. Use our Look Up by Model Number tool above to find the exact OEM replacement, or use Shop by Specs to browse by motor type and horsepower. Every order placed before 3 PM CST ships same day from National HVAC Parts.

Frequently Asked Questions

Can I use a higher HP motor as a replacement?

Generally no. A higher HP motor draws more current and can overload the circuit, trip breakers, and damage the furnace control board. Always match the original HP rating. The exception is multi-HP motors that include the correct HP setting as one of their speed taps.

What is the difference between CW and CCW rotation?

CW (clockwise) and CCW (counterclockwise) refer to the shaft rotation direction when viewed from the shaft end of the motor. The rotation must match your blower wheel or fan blade orientation. Many universal motors can be wired for either rotation by swapping lead connections, but always verify before installing.

How long do HVAC motors typically last?

A well-maintained HVAC motor typically lasts 10-15 years. Factors that shorten life include running with a dirty air filter (overworks the blower motor), electrical surges, excessive humidity, and lack of lubrication on older sleeve-bearing models. ECM motors tend to last longer than PSC motors due to reduced heat generation.

Do I need to replace the capacitor with a new motor?

It is good practice to install a new run capacitor whenever you replace a PSC motor. A weak or failing capacitor can damage a new motor. ECM motors do not use external run capacitors. If your old motor failed due to a bad capacitor, the capacitor definitely needs replacement to prevent the same failure on the new motor.
